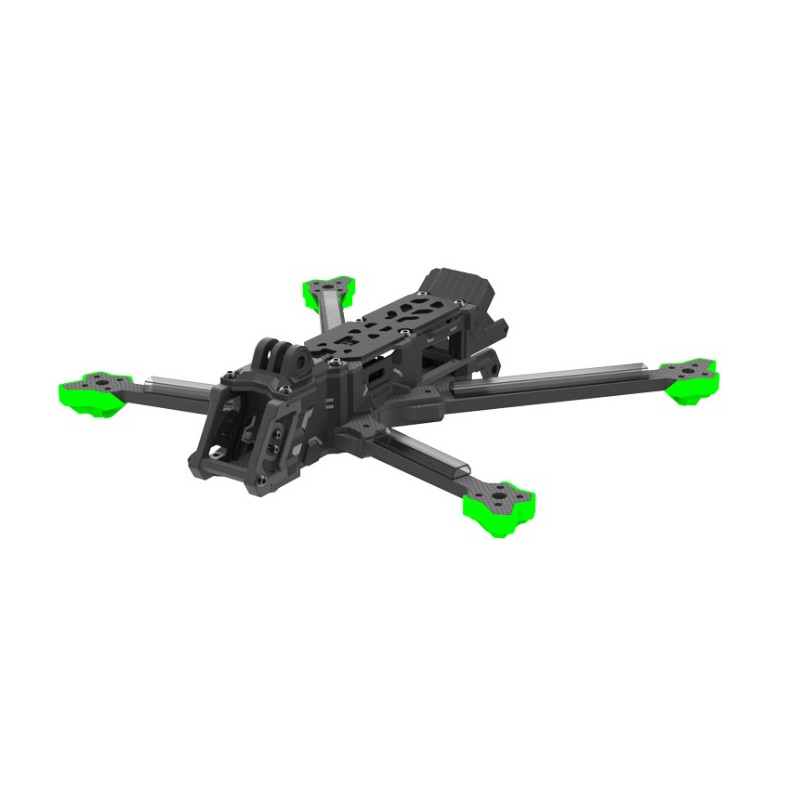

Nazgul Evoque F5D V2 Frame Kit By Iflight

5/5 (2 notifications)
Hors stock
€105.90
Out-of-Stock Notify me when the product is available again

11 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

The second version of the famous Nazgul Evoque is compatible with the DJI O3 HD system.

Emphasis has also been placed on the conservation of electronic components, through strategic airflow and a layout of the FC and ESC preventing dirt from settling there.

Bullet points

  • V1 to V2 has been upgraded for DJI O3 HD Air Unit digital transmission
  • Heatsink specially designed for DJI O3 Air Unit
  • New camera mount for wider camera FOV with TPU dampening inserts
  • New side panels to perfectly fit the O3 air unit in the back
  • New TPU mount for VTX 5.8G Dual Antenna

Specifications

  • Frame wheelbase: 223mm
  • Frame Dimension: L190*W136*H36mm
  • Frame Body Dimension: 36mm
  • Geometry : DeadCat
  • Arm Thickness: 6mm
  • Bottom Plate Thickness: 3mm
  • Top Plate Thickness: 2mm
  • Upper Plate Thickness: 3mm
  • Camera Plate Thickness: 3mm
  • Motor Mounting: 16x16mm
  • FC space: 20*20mm (intended for the BLITZ mini F7 E55 stack)
  • VTX Mounting: 25.5*25.5 φ1.6mm
  • Weight: 150grams (Included no TPU Parts)

Included

  • 1x Evoque F5 V2 Frame Kit
  • 1x O3 Air Unit Heatsink
  • 2x O3 IPEX to RP-SMA Antenna Pigtails
  • 1x O3 Dual Antenna TPU
  • 1x GoPro TPU Base Mount
  • 1x Screw Bag
  • 4x TPU Armguard
  • 2x Anti-slip Battery Pad
  • 2x Battery Strap (20*250mm)
  • 1x Battery Strap(20*250mm)
