Manufacturer : DroneFPVRacer / Référence : STACK-DFR
DFR F722 Dual HD + KO55 3-6S BLHeli_S Stack
En stock
€74.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics

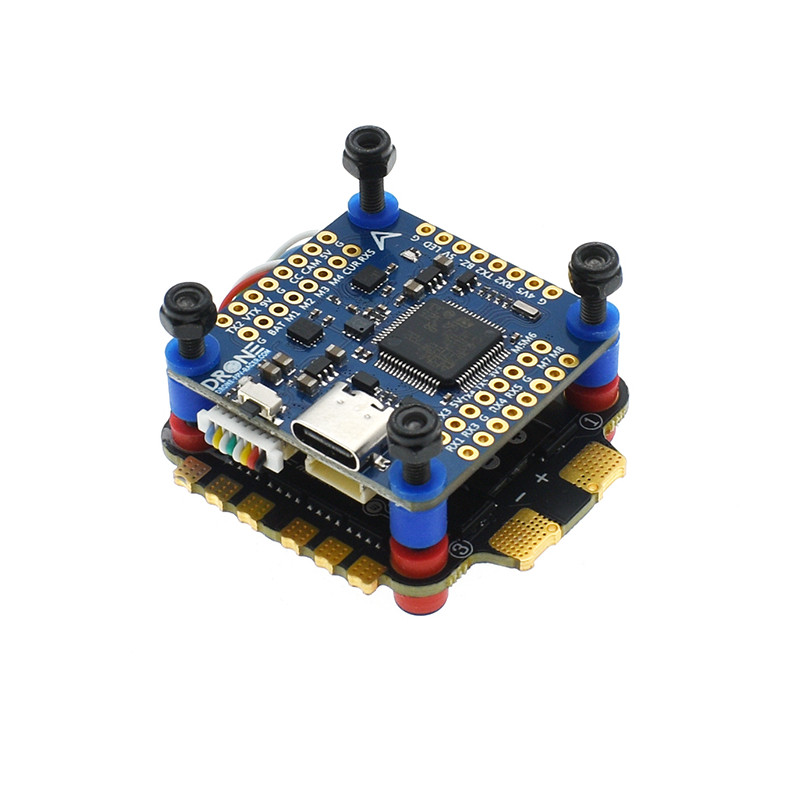

This 30.5x30.5mm stack more than attractive consists of the DFR F722 Dual HD flight controller and the Skystars KO55 55A ESC.
The DFR FC is equipped with an ICM42688P gyroscope, a DPS310 barometer, a 32MB blackbox, and a 5V 2.5A / 9V 2.5A BEC.
The ESC can handle a current of 55A and supports 3-6S Lipo voltages.
A custom soft wire tablecloth is provided to bind the two components together.
F722 FC
- Universal USB Type-C connector instead of micro USB
- Plug and Play
- Supports BLHeli for easy ESC upgrades and configuration.
- Built-in DJI Digital FPV. MCU: 216 MHz STM32F722
- Cible firmware : DFR_F722_DUAL_HD
- Gyro: ICM42688P
- Baro: DPS310
- Black box: 32 MB
- Betaflight OSD: YES
- BEC: 5 V 2.5 A / 9 V 2.5 A
- Inverter for SBUS input (UART2-RX)
- Supports Smartaudio & Tramp VTX protocol
- Beeper: Yes
- RSSI Input Pad: Yes
- UART: 5 (UART3 can be used as I2C)
- Motor Outputs: 8
- 8-pin 4-in-1 ESC port (GND, VBAT, M1, M2, M3, M4, CUR, R5)
- 6-pin DJI Air Unit port (R1, GND, R2, T2, GND, 9V)
- BLHeli32 Telemetry: RX5
- Voltage Input: Recommended 2-6S, MAX 8S
- Mounting Pattern: 30.5*30.5mm φ4mm with φ3mm eyelets
- Dimensions: 36*36mm
KO55 ESC
- Dimensions: 41x46mm
- Mounting Holes: 30.5x30.5mm/¦µ3mm
- Weight:13.3g
- Supports: 3-6S Lipo input
- Firmware: BB21 MCU, 48Mhz Runs BLHELI 16.X Firmware
- Current sensor: YES
- BEC: NO
- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
- Target: Q-H-30 BLS 16.7
Included
- 1x DFR F722 Dual HD flight controller
- 1x Skystars KO55 BLHeli_S 3-6S ESC
- 1x 12AWG XT60 Cable
- 1x Capacitor
- 1x Set of dampers
- 1x Set of wires
- 1x Set of M3*25mm screws
- 4x Nylstop M3 nut
