C155 - 4800KV Motor By AxisFlying
Related accessories
Technical characteristics

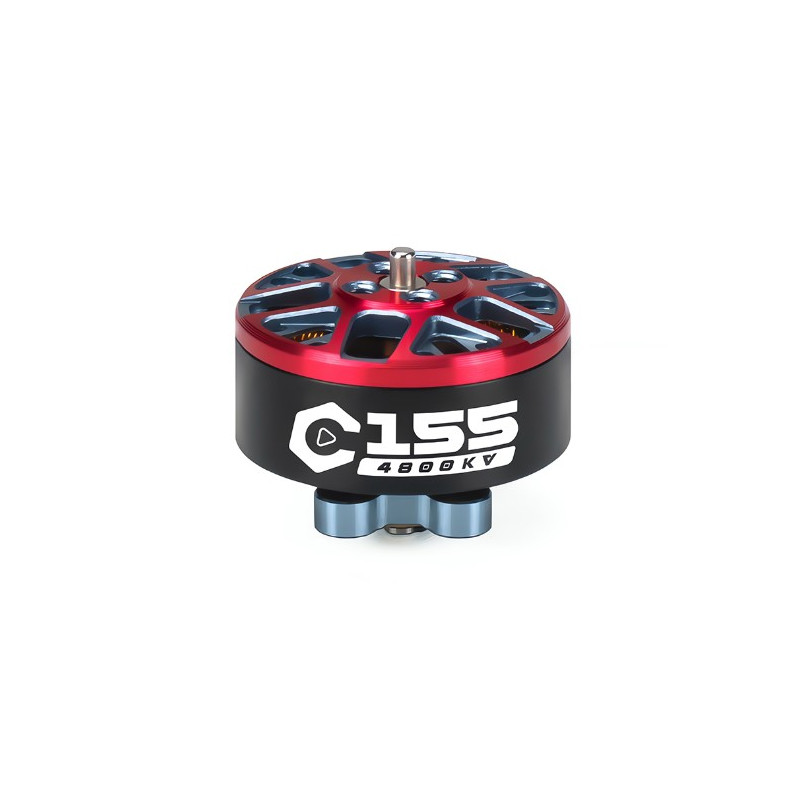

Discover the AxisFlying C155 brushless motor, specially designed for 2.5″ to 3.5″ cinewhoop drones and for achieving smooth, cinematic aerial footage. Built for FPV enthusiasts who want to combine agility with cinematic quality, this motor embodies the technical precision required for even the most demanding shots.
With its 4800KV configuration, this motor stands out as a high-end component for any demanding DIY build — whether you’re a cinematic pilot seeking ultra-clean flights or a racing enthusiast looking for an agile and responsive setup. It delivers the promise of controlled flight, refined visual output, and easy installation.
The C155 features a 1.5 mm T-mount shaft, supports 3–4 S voltage, and pairs perfectly with Gemfan 2520, Gemfan D63, or HQProp T3.5x2.5x3 propellers.
Specifications
- KV : 4800
- Shaft diameter : 1.5mm
- Internal resistance : 113.59mΩ
- Voltage : 3-4S
- Dimension : 16*9mm
- Max power : 253.6W
- Configuration : 12N14P
- Peak current : 18.63A
- Silicone wire : 20#150mm
- Weight : 11.2g (avec câble)
Included
- 1x C155 motor
- 1x Set of screws
