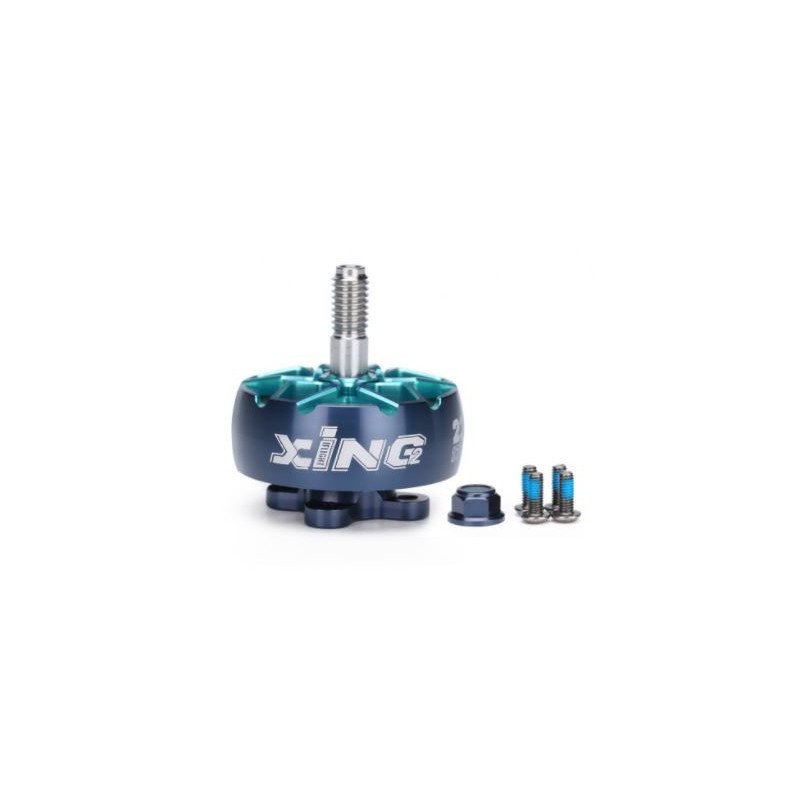

Iflight XING2 2306 - 2550Kv Motor
Iflight XING2 2306 - 2550Kv Motor
Iflight XING2 2306 - 2550Kv Motor
Iflight XING2 2306 - 2550Kv Motor
Manufacturer : Iflight / Référence : X009344

Iflight XING2 2306 - 1755Kv Motor

€22.90
3 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Technical characteristics

The iFlight XING series motor is designed and named by FPV pilot & specialist Patrick Xing.

Product Description

The iFlight XING series motor is designed and named by FPV pilot & specialist Patrick Xing. Combining IFlight's high-quality motor production technology with Patrick Xing's technical expertise, a top-of-the-line motor has been produced. iFlight XING provides the most incredible power and thrust in the lightest weight. The elliptical body, powerful stator with N52H magnets and very small air gap makes iFlight XING series motor incredible new style motors.

iFlight continues the tradition of making the best and most suitable products to offer different size and KV value to meet different pilots’ needs. The 4mm Titanium alloy shaft and high-quality N52H magnets surrounded by high-temperature resistant windings. It means that the iFlight XING series motor can be pushed to the limit. The sturdy structure and high-quality materials make iFlight XING performs like a beast.

There's non-slip design on the contact surface of iFlight XING motor and propellers to increase the friction and to improve durability; Multi-heat dissipation hole design, helps to pull heat away continuously; Standard M3 16mm*16mm mounting pattern at the bottom, adapt to all frames on market; Motor cable length 150mm can meet different requirements whether connecting single or 4 in 1 ESC; Each motor has been dynamic balanced, all of them have passed the highest standard iFlight manufacturing and assembling procedure.

Bullet points

  • 5mm titanium alloy shaft, our strongest prop shaft ever!
  • Crash resistant 7075 aluminum bell
  • Smooth and long-lasting NSK 9x4x4 bearings
  • Center slotted N52H curved arc magnets
  • XING O-ring bearing gap protection
  • Motor wires protector
  • Dynamically balanced

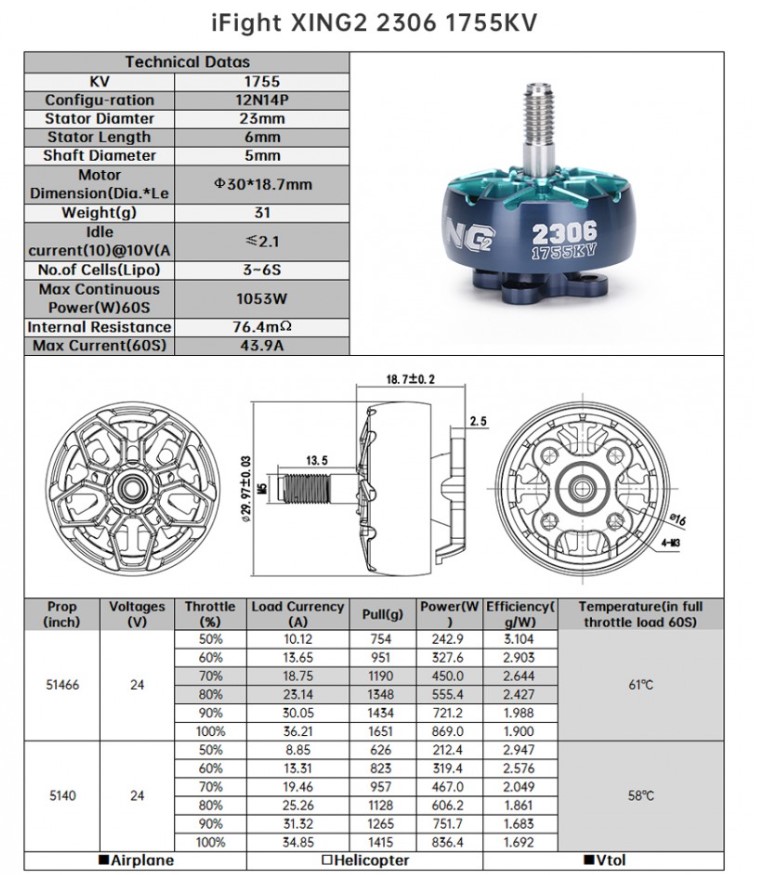

Specifications

  • Model: XING2 2306
  • KV: 1755KV / 2555KV (select)
  • Version: CW Screw Thread
  • Input Voltage: 4S/6S Lipo
  • Configuration: 12N14P
  • Stator Diameter: 23mm
  • Stator Length: 6mm
  • Weight: 31.6g with short wire
  • Wire length: 20AWG 160mm
  • Mounting pattern: 16*16mm

Included

  • 1x Iflight XING2 2306 - 1755Kv Motor
