Manufacturer : Voltara / Référence : VOLTARA-70A

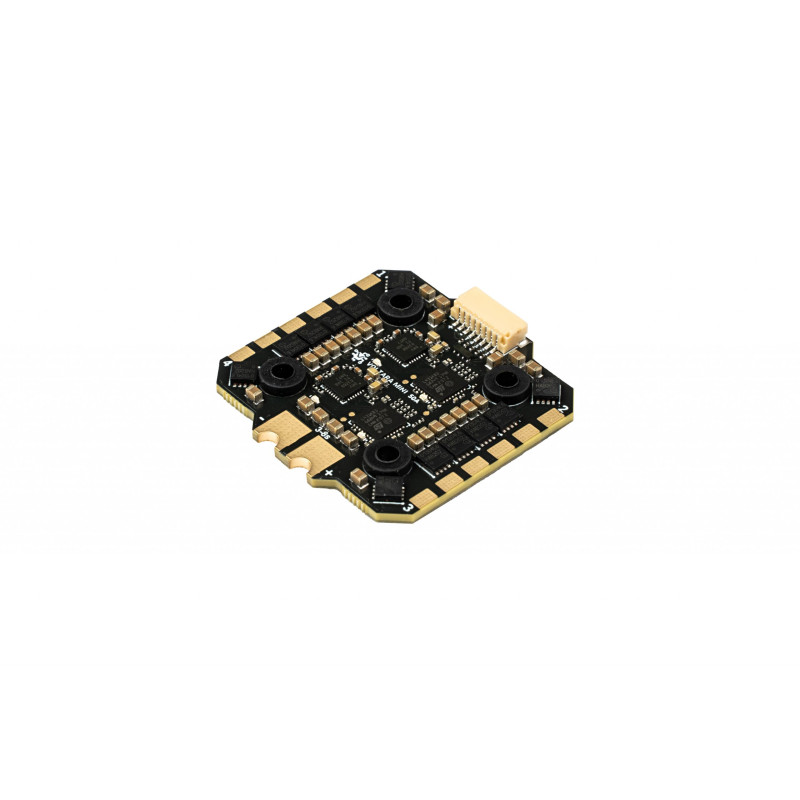

Mini 50A 4in1 ESC By Voltara
En stock
€109.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The Voltara MINI 50A ESC is the compact sibling of the 70A, engineered for unmatched resilience in FPV. Compatible with 2.5″–7″ builds, it delivers consistent performance via a precision-engineered PCB and premium components. Its Voltara FW firmware unlocks the hardware’s full potential and adds advanced protection to withstand impacts and crashes—ensuring reliability and freedom to push harder.
- Use range: 2.5″ to 7″
- Refined hardware design (PCB + premium components)
- Voltara FW with robust protection mechanisms
- Built for demanding FPV setups
.png)
Key Features:
- Size: 37×33 mm (37×37 mm with wings)
- Weight: ~12 g
- Mounting: M3 20×20 mm pattern
- Input: 3s–8s (absolute 5V–40V)
- Current: 60 A / ESC output (4×60 A requires temperature attention)
- PCB nano-coating: hydrophobic coating (water protection)
- Signal: Dshot 150/300/600/1200/2400, Dshot 300/600 (bidir FW)
- Telemetry: voltage, current, temperature, RPM, mAh used
- Plug & Play with KISS ULTRA Flight Controllers
- Fully compatible with BetaFlight (bidir FW, BF 4.5.2+)
Built-in Protections:
- Hardware: dual extreme overcurrent protection (motor & hardware safety)
- Software: current, temperature & stall protections
Included
- 1x 50A ESC
