Manufacturer : Voltara / Référence : VOLTARA-70A
70A 30x30 4in1 ESC By Voltara
Hors stock
€109.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The Voltara 70A 4in1 ESC is designed to power 5- to 10-inch configurations and offers uncompromising performance.
From the meticulous PCB design to the selection of premium electronic components, every detail has been refined for optimal performance.

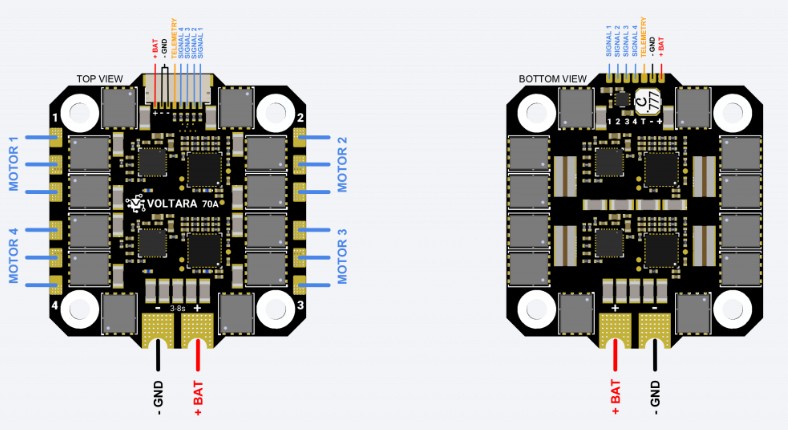

The Voltara 70A features a 30.5x30.5mm mounting hole, plug-and-play connectors for connecting to the KISS ULTRA flight controller (related accessory), supports Dshot 150-2400, and features a hydrophobic nano-coating for water protection.
Specifications
- Size: 40x39mm (40×42,8mm with wings)
- Weight: ~17g
- Mounting: M3 30.5×30.5mm pattern
- Input: 3s-8s (absolute values 5v-40v)
- Current: 80A / ESC OUT (4x80A requires temperature attention)
- PCB nano-coating: Hydrophobic coating(protects components from water)
- Signal input: Dshot 150/300/600/1200/2400, Dshot 300/600 (bidir FW)
- Telemetry: Voltage, Current, Temperature, RPM, mAh used.

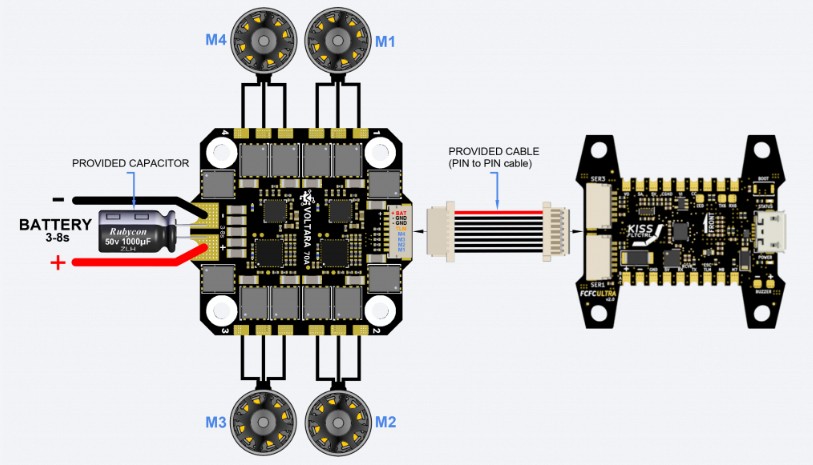

- Plug & Play with KISS ULTRA FlightControllers
- Fully Compatible with BetaFlight with bidir FW (BF 4.5.2+)
Included
- 1x 70A ESC
- 1x 8-pin cable
- 1x Capacitor
