Manufacturer : Diatone / Référence : JH60990

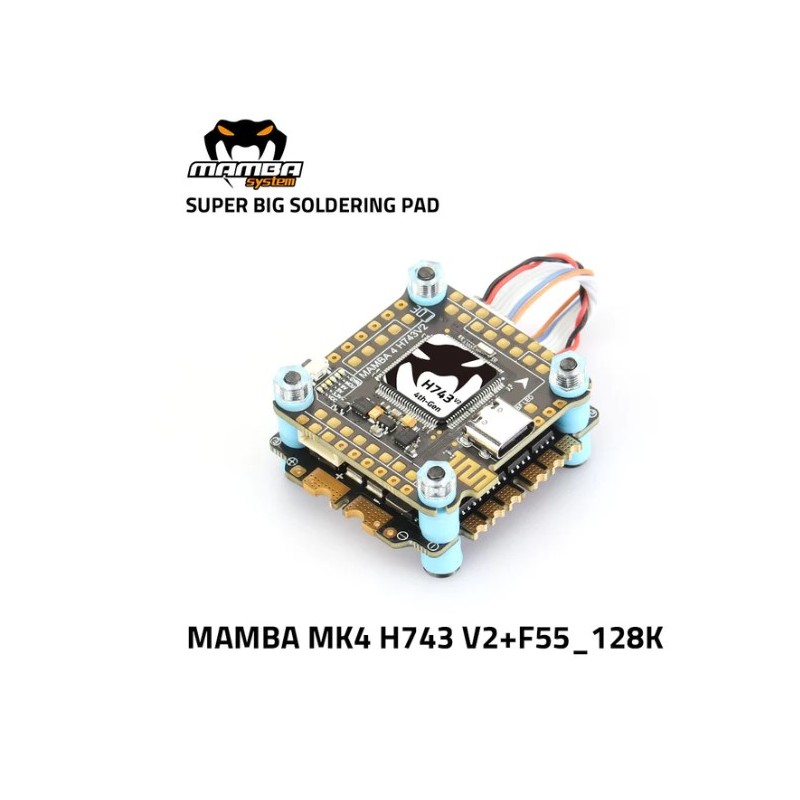

Mamba MK4 H743 V2 F55_128k Stack By Diatone
En stock
€142.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
This Mamba H743 V2 F55_128k stack from Diatone has an ICM-42688-P gyro, an OSD, a barometer and 8 UARTS.
The ESC supports Dshot300/600/1200.
Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.
FC Specifications
- MCU: 480MHz STM32H743
- GYRO: DUAL ICM-42688-P
- Target:MAMBA H743_2022B
- OSD: Yes
- Blackbox: 128M Flash Memory
- Barometer: SPL06
- Uarts: 8Set
- I2C: Yes
- F.Port: Yes
- RSSI: No
- Buzzer Pad: Yes
- CURR Pad: Yes
- ESC Signal: 8 Set
- ESC Soft: Dshot300/600/1200
- ESC Telemetry: Yes
- Power Led: Yes
- LED Controller:BF LED/MB LED
- AIR UNIT Port: Yes
- WIFI: SpeedyBee APP
- VTX Switch: Yes
- Receiver Protection: Yes
- TVS Protection: Yes
- BEC:3.3V 0.5A& 5V 3A& 9V 3A
- Input: 3~6S Lipo (12.6~25.2V)
- Mounting size: 30.5mm/M3
ESC Specifications
- Input voltage: 3~6S Lipo (12.6V~25.2V)
- Continue current:55A×4
- Burst current:65A (10S)
- BEC: No
- Target:BLHeli_32 MAMBA F55_128K
- SOFT: Dshot300/600/1200
- PWM:24~128K
- TVS Protection: Yes
- Mounting size: 30.5mm/M3
Included
- 1x Mamba H743 V2 FC
- 1x F55_128k ESC
- 1x SH1.0 cable for air unit
- 1x SH1.0 8pin cable
- 1x AMASS XT60 connector
- 1x 1000uF 35V capacitor
