Manufacturer : Diatone / Référence : JH61161

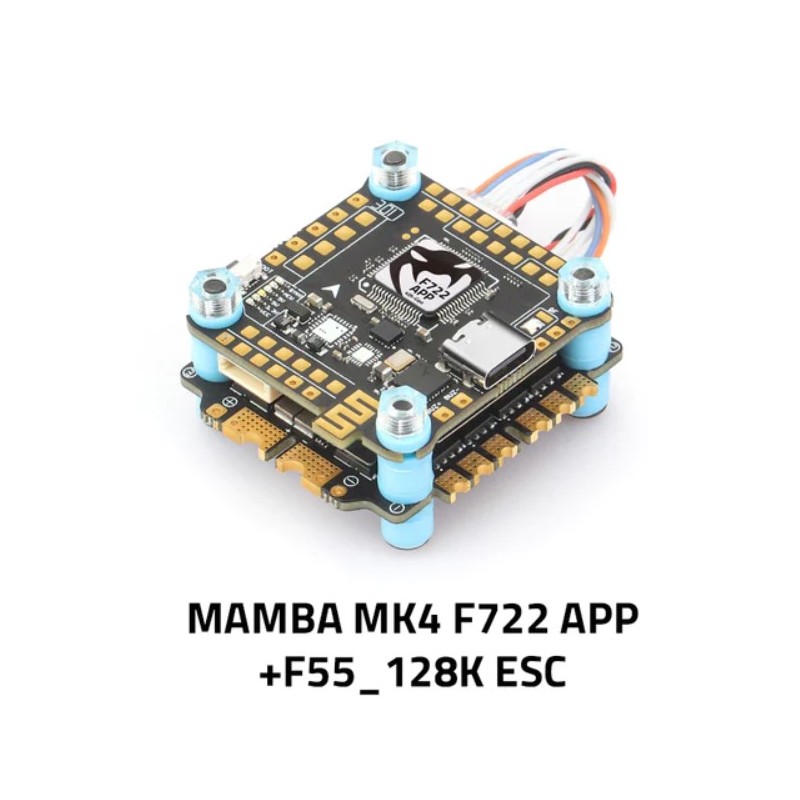

Mamba MK4 F722 APP F55_128k (MPU6000) Stack By Diatone

Hors stock
€144.90
Out-of-Stock Notify me when the product is available again

15 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

Here is Diatone's Stack Mamba F722 MK4 55A, equipped with a MPU6000 gyro. This fourth generation of FC brings in particular more space thanks to the new style of pads which will reduce welding errors.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

MK4_F722_APP_7.jpg?v=1655345692

FC Specifications

  • MCU: 216MHz STM32F722
  • GYRO: ICM42688P
  • OSD: AT 7456E
  • Blackbox: 16M Flash Memory
  • Uarts: 6Set
  • Receiver : TBS/SBUS/IBUS/DSM
  • I2C : Yes
  • F.Port : Yes
  • Buzzer Pad : Yes
  • CURR Pad : Yes
  • ESC Signal : 8 set
  • BEC 3.3V : 0.5V
  • BEC 5V : 3A
  • BEC 9V : 3A
  • MB LED : Yes
  • BF LED : Yes
  • Air unit port : Yes
  • WIFI : SpeedyBee APP
  • VTX Switch : Yes
  • BEC Protection : Yes
  • Receiver protection : Yes
  • TVS Protection : Yes
  • Input : 6S Lipo
  • Soft ware : Betaflight
  • Mounting : 30.5x30.5mm/M3
  • Size : 38x40.5x8mm
  • Weight : 10g

ESC Specifications

  • Inout voltage : 3~6S Lipo
  • Continue current :55A
  • Burst : 65A
  • BLHeli_32
  • Target : F55-128k
  • Soft : Dshot300/600/1200
  • Mounting : 30.5mm/M3
  • PWM : 24-128k

Included

  • 1x FC MK4 F722 APP
  • 1x F55_128k ESC
  • 5x Silicone damper M3
  • 5x M3 ESC insulation column
  • 1x 8pin single-ended cable for FC
  • 2x 8pin cable
  • 1x 6pin cable for air unit
