Manufacturer : Sequre / Référence : H743V2-E70G1-SEQ

H743 V2 & E70 G1 AM32 Mini Stack By Sequre

Hors stock
€139.90
Out-of-Stock Notify me when the product is available again

14 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

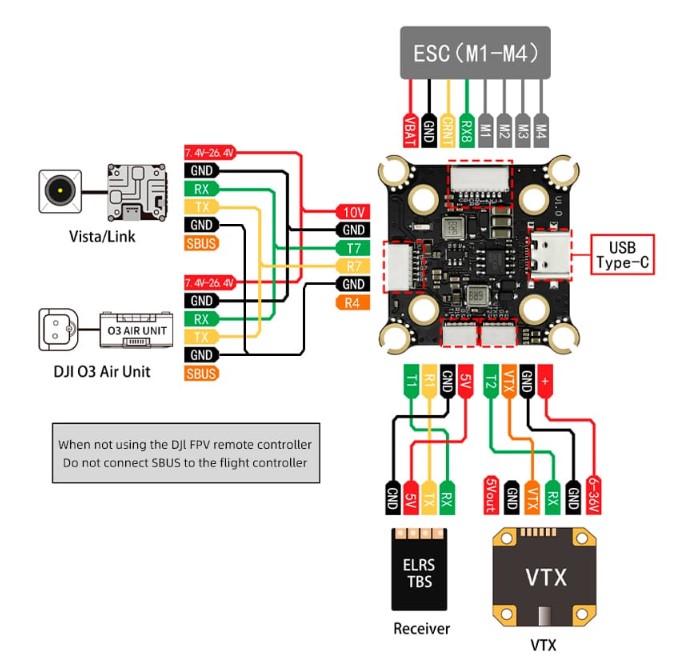

This 20*20mm Sequre stack is compatible with DJI O3 unit and analog VTX, it consists of H743 V2 flight controller and 70A AM32 4in1 ESC.

The FC features STM32H743 processor, ICM42688P gyro, BMP280 barometer and AT7456E OSD chip.

The E70 G1 ESC supports AM32 firmware, 2-8S voltage, has 70A continuous current and has a built-in galvanometer.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

H743 V2 FC

  • Product Name : SEQURE H743 V2
  • Processor : STM32H743
  • Gyroscope : ICM42688P
  • Barometer : BMP280
  • OSD Chip : AT7456E
  • Black Box : 16MB
  • Firmware : SEQUREH7V2
  • Input Voltage : 4-8S Lipo
  • BEC Output : 5V/2.5A，10V/2A
  • UARTS : 6
  • Control Motor : M1-M8
  • LED : WS2812 LED Strip
  • Buzzer : Support
  • ESC Telemetry : RX8
  • USB : Type-C
  • Installation Hole Distance : 20x20mm,  Φ4mm / 30.5x30.5mm,  Φ4mm
  • Product Size : 36.5*36.5*6mm
  • Product Weight : 7.3g

E70 G1 ESC

  • Model : E70 G1
  • Processor : STM32G071
  • Firmware : AM32
  • PWM Frequency : 16KHz-128KHz
  • Working Voltage : 2-8S Lipo
  • Continuous Current : 70A
  • Peak Current : 150A
  • Support Protocol : Dshot600/300/150,Oneshot,Multishot,PWM
  • Telemetry Return : Yes
  • Galvanometer : Yes
  • BEC : No
  • Mounting Hole Spacing : 20*20mm, Φ4mm/M3
  • Product Size : 50.5*36*6mm
  • Product Weight : 15.8g

Bullet points

  • STM32H743 processor
  • ICM42688P gyro
  • Integrated barometer, OSD and blackbox
  • 6 UARTs
  • O3 and analog compatible
  • 4-8S voltage
  • AM32 firmware
  • Integrated galvanometer
  • 20*20mm mounting
  • 16-128KHz PWM frequency

Included

  • 1x SEQURE H743 V2 FC
  • 1x E70 G1 4IN1 ESC
  • 1x 30AWG 40mm Reverse Double Headed SH1.0-8P Flat Cable
  • 1x 30AWG 100mm Single-head SH1.0-4P Flat Cable
  • 1x 60mm Length 12095 5V Buzzer
  • 10x M3*8mm Silicone Shock-absorbing Washer(Black)
  • 2x 12AWG 100mm Power Cable (black/red)
  • 1x XT60H-M Black Male Connector
  • 1x 35V 680UF Solid Capacitor
  • 4x M3*25mm Screw
  • 4x M3 Sleeve Nut
