Manufacturer : NewBeeDrone / Référence : 01AC03+00AI21+C005

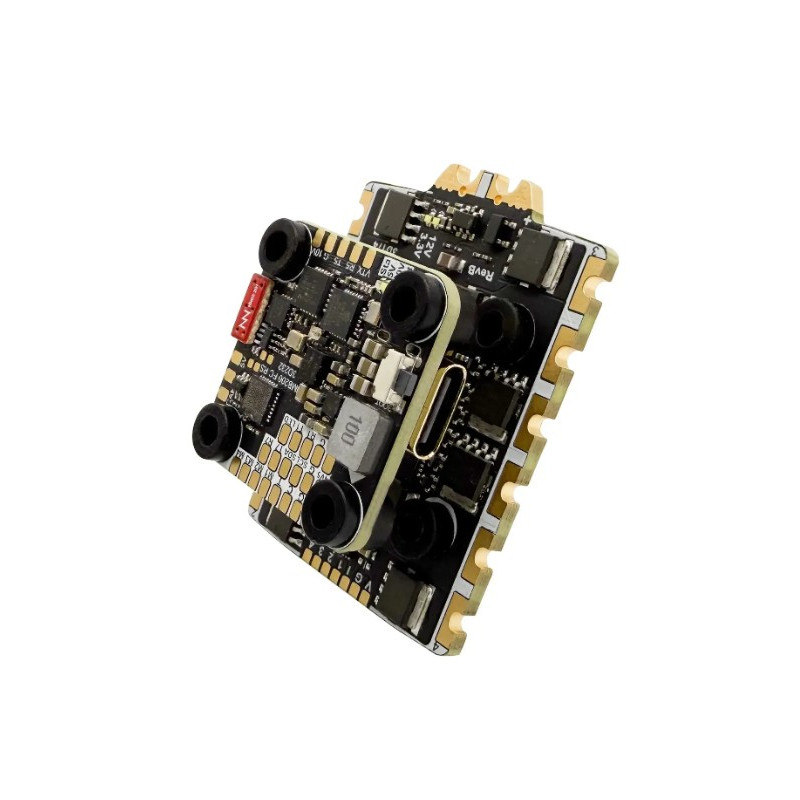

Hummingbird 200 RaceSpec 20x20 F435 80A ELRS 2.4G Stack By NewBeeDrone
Hors stock
€114.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The Hummingbird 200 RaceSpec 20×20mm stack is designed for 5″ FPV racing, developed in collaboration with professional pilot Kyle Buell.
The flight controller features an AT32F435 MCU running at 288 MHz, an ICM‑42688 gyro with dedicated LDO power supply, and an integrated 2.4 GHz ExpressLRS receiver for reliable connectivity, even in extreme conditions.
The 4-in-1 ESC supports a continuous current of 80 A, 100 A burst, is compatible with 3‑6S LiPo, and uses a 6-layer PCB reinforced with overvoltage protection.
Quick reminder: upon receipt of your item, please connect it via USB and calibrate the accelerometer before starting to weld.
F435 ELRS FC
- MCU : AT32F435 @ 288MHz
- Gyro : ICM42688P
- Built-in receiver : ELRS 2.4G
- UART1 : Internal ELRS
- UART5 : HDZero VTX
- UART7 : Free
- I2C : Ready
- LED : Ready
- BEC outpût : 10V 2A + 5V 2A
- OSD : NBD7456
- Mounting : 20x20mm (M2 or M3)
- Weight : 4.8g
80A ESC
- Firmware : AM32
- MCU : AT32F421
- Continuous current : 80A/ channel
- Burst : 100A (3s)
- Voltage input : 3-6S LiPo
- PCB : 6-layer, 3oz copper with blind vias
- TVS : 2x onboard TVS diodes
- Motor pads : 3D multi-surface reinforced design
- Connector : 8pin JST SH1.0
- Dimensions : 35x45mm
- Weight : ~13.9g
Included
- 1x AT32F435 ELRS flight controller
- 1x 80A AM32 ESC
- 10x Grommet
- 1x O3/O4/HDZero plug and play cable
- 1x SH1.0 8pin cable
- 2x Silicone wire
- 1x 14AWG power cable
- 1x XT60 plug
- 1x 8pin silicone cable
- 1x 1000uF capacitor
- 2x Heat shrink
