Manufacturer : Matek / Référence : CAN-L4-BM
CAN-L4-BM Digital Power Monitor By Matek
Hors stock
€32.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
Matek's CAN-L4-BM is an ultra-precise digital power monitor based on TI INA239 firmware and ArduPilot AP_Periph

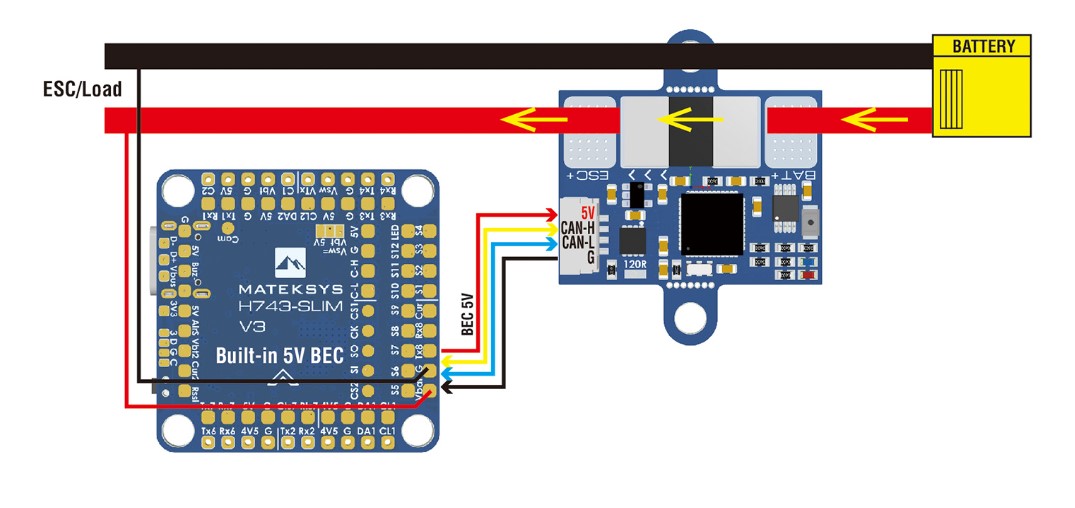

Any flight controller that supports the DroneCAN protocol will be able to easily get accurate current and voltage readings via CAN.
Specifications
- MCU: STM32L431xC, 256KB Flash
- INA239 85-V, 16-Bit, High-Precision Power monitor IC With SPI Interface
- Battery Voltage sense input: 0~85V
- Current Sense Range: 0~204.8A
- Load current on current sensing resistor: 150A(Continuous), 204.8A(Burst)
- Voltage accuracy: ± 0.1%
- Current accuracy: ± 2%
- CAN, DroneCAN Protocol
- UART2, spare, DFU
- ST debug, SWCLK & SWDIO
- LED Blue, Fast blinking, Booting
- LED Blue, Slow blinking, working
- LED Red, 3.3V indicator
- Power supply for CAN-L4-BM board : 4.5~5.5V @5V pad/pin
- Power consumption: 10mA
- Operating Temperatures: -40~85 °C

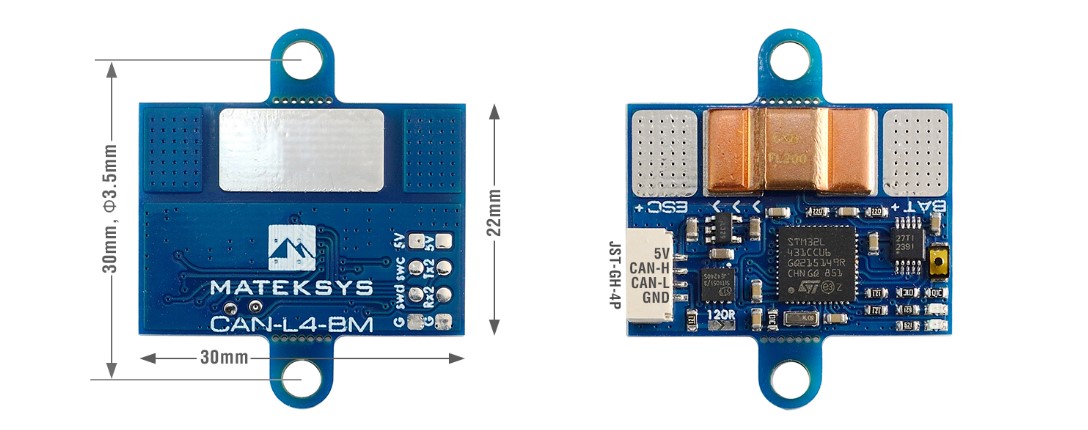

- Board Size: 30mm*22mm*3mm. 4g
- Firmware : ArduPilot AP_Periph MatekL431-BattMon
- Update via DroneCAN GUI Tool
Included

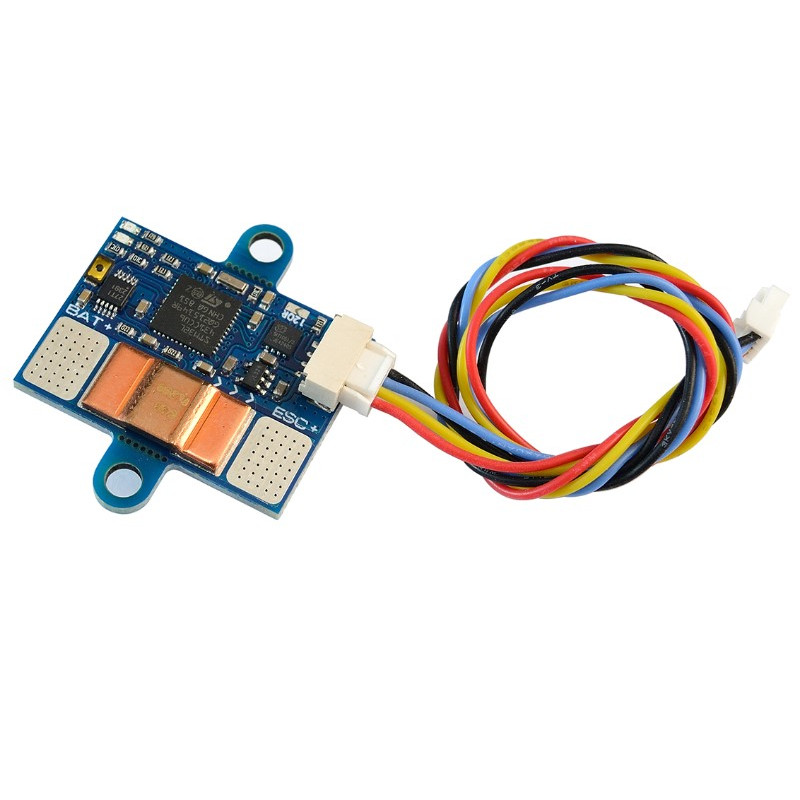

- 1x CAN-L4-BM
- 1x JST-GH-4P to JST-GH-4P 20cm silicon wire
