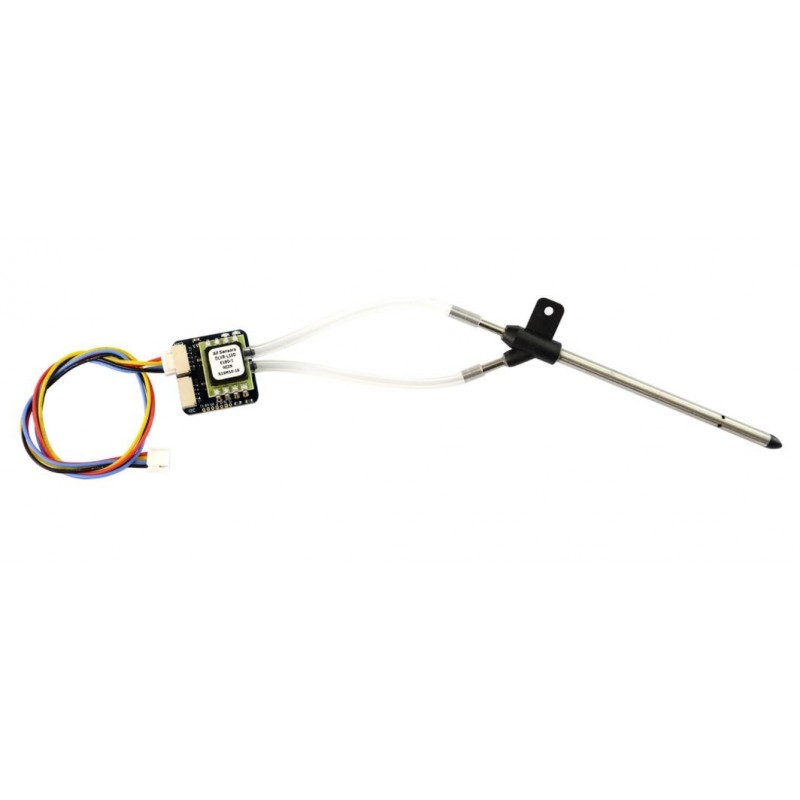

Matek AirSpeed Sensor ASPD-DLVR

• All sensors DLVR series is the best airspeed sensor ArduPilot currently support.

Specifications & Features

• ArduPilot AP_Periph F303 CAN node
• All sensors DLVR-L10D,  Industrial temperature range
•  CAN  & I2C Interface
• Typical Platforms: Fixed-Wing, QuadPlane, VTOL

• CAN JST-GH connector,  UAVCAN Protocol
• I2C JST-GH connector,  DLVR-L10D I2C mode (I2C address 0x28)
• UART1, Firmware update
• UART2, Spare for external GPS
• UART3, MSP Protocol (To be supported)

• CAN bootloader LED, Blue
  • Fast blinking,  No communication between CAN node and Flight Controllers
  • Slow blinking, Communicating between CAN node and Flight Controllers
• 3.3V Power LED, Red

• Input voltage range: 4~6V
• Power consumption: 60mA
• Operating Temperatures: -20°C to 85°C
• Pressure Range:  2500Pa (± 10 inH2O)
• Burst Pressure: 75kPa
• Speed Range: ±250 km/h

• 22mm*22mm*12.5mm
• 4g

Includes

• 1x ASPD-DLVR
• 2x JST-GH-4P to JST-GH-4P 20cm silicon wire
