Manufacturer : Matek / Référence : CAN-L4-3100

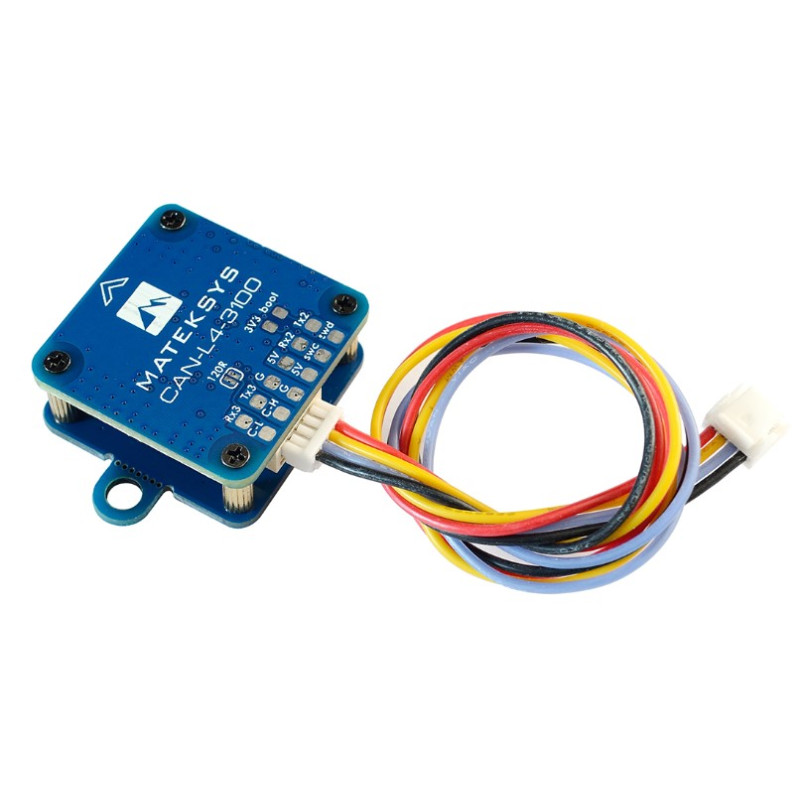

AP_Periph CAN Magnetometer RM3100 By Matek
En stock
€39.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
This CAN magnetometer from Matek is based on RM3100 firmware and ArudPilot AP_Periph.
RM3100 technology offers high resolution, low power consumption and limits signal noise.
Specifications
- PNI RM3100 Geomagnetic Sensor
- CAN node MCU: STM32L431xC, 256KB Flash
- CAN, DroneCAN Protocol
- UART2, MSP output (MatekL431-Periph fw)
- UART3, for external GNSS module
- ST debug, SWCLK & SWDIO
- LED Blue, Fast blinking, Booting
- LED Blue, Slow blinking, working
- LED Red, 3.3V indicator
- Power supply for CAN-L4-3100 board : 4.5~5.5V @5V pad/pin
- Power consumption: 22mA
- Operating Temperatures: -40~85 °C
- Board Size: 36mm*25mm*10mm. 6g
- 3D File CAN-L4-3100_step.zip
- Firmware : ArduPilot AP_Periph: MatekL431-GPS or MatekL431-Periph
- Update via DroneCAN GUI Tool or Mission Planner (AP_Periph.bin)
- Update via STLink (AP_Periph_with_bl.hex)
Included
- 1x CAN-L4-3100
- 1x JST-GH-4P to JST-GH-4P 20cm silicon wire
