GNSS SAM-M10Q By Matek

In stock
€29.08

View More Info
This product earns you 3 loyalty points.

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

100% secure payment with

Paypal
Paypal 4x 4X PayPal
Alma 2X 3X 4X
Ajouter à la Wishlist
GNSS SAM-M10Q By Matek - Drone-FPV-racer.com

Detailed Description

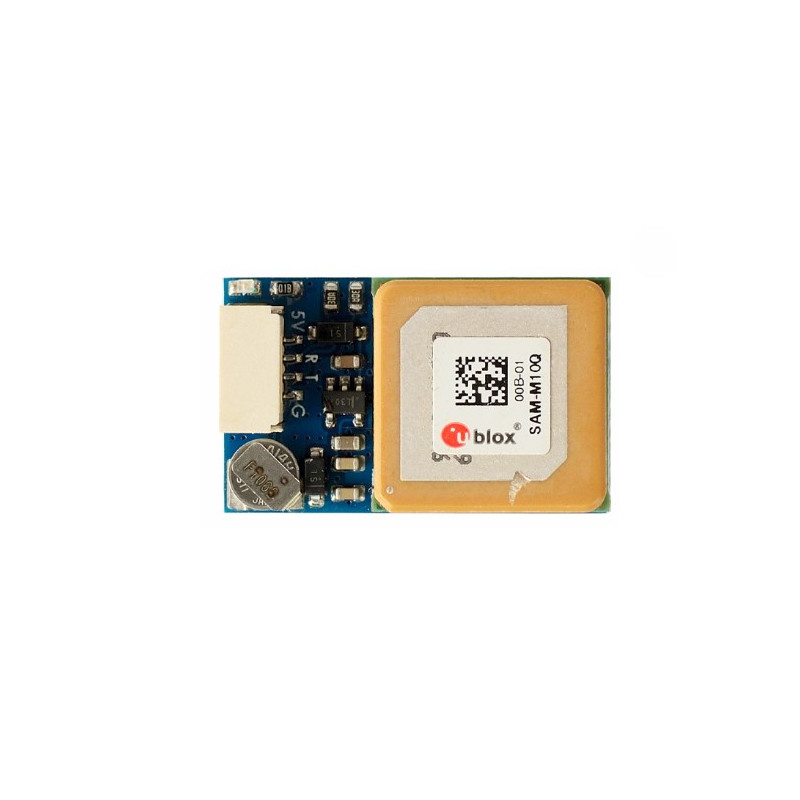

The SAM-M10Q uses a multi-constellation GNSS module powered by u-blox SAM-M10Q-00B.

It supports simultaneous reception of four GNSS (GPS/GLONASS/BeiDou and Galileo).

The high gain patch antenna offers the best balance between performance and small size.

Specifications

Compass With compass

Specifications

  • No Magnetic Compass built-in
  • Patch antenna 15*15*4mm
  • Input voltage range: 4~9V (5V pad/pin)
  • Power consumption: 10mA
  • UART baudrate: 9600 default
  • Operating Temperatures: -20~80 °C
  • UART(TX, RX) interface for GNSS SAM-M10Q-00B
  • JST-GH-4P connector (SM04B-GHS-TB). 1.27mm pitch
  • GNSS PPS LED, Green. (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)
  • Protocol: UBX(u-blox) 5Hz@GPS+GAL+BDS B1C+GLO or NMEA 1Hz
  • 26mm*16mm*8mm
  • 7.5g

Included

  • 1x SAM-M10Q
  • 1x JST-GH-4P to JST-GH-4P 20cm silicon wire
