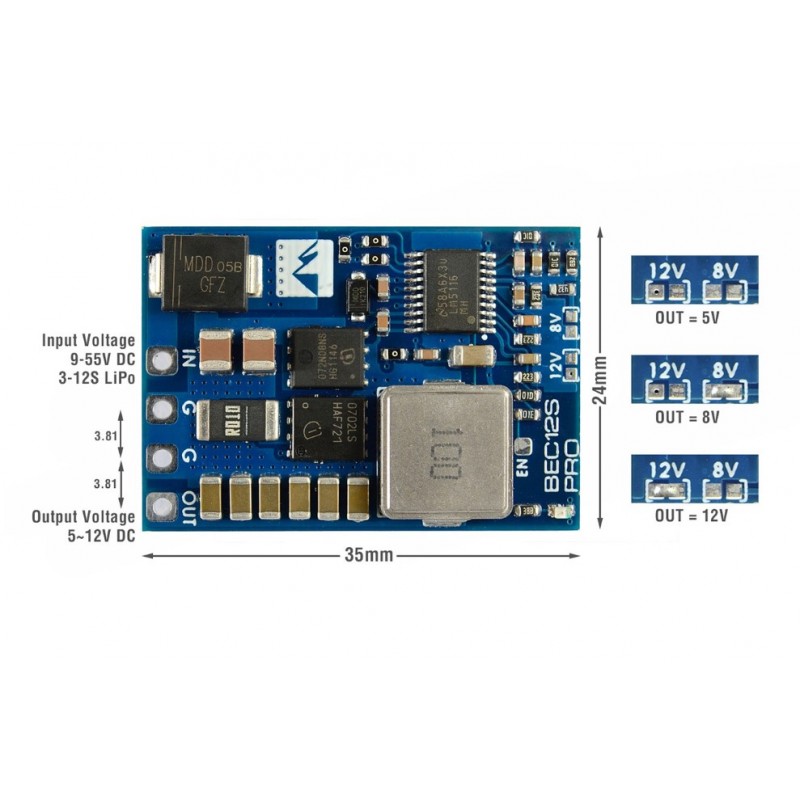

BEC12S PRO 9-55V to 5/8/12V-5A By Matek

Specifications

• Wide 9V to 55V Operating Input Range with TVS protection
• 3x Output voltage options, 5.2V, 8V or 12V. Default 5.2V.
• Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%
• Supports continuous output current of up to 5A, peak current of 9A.
• Output ripple 30mV (VIN=50V, Output 5.2V @ 5A), 60mV (VIN=50V, Output 12V @ 5A)
• Standby current: 5~10mA
• No reverse-input voltage protection
• Thermal Shutdown
• Output Short-circuit tolerant (2 seconds)
• Overcurrent protection & self-recovery
• Dropout voltage: 2V (Input>=14V is required for stable 12V output)
• Pins distance: 3.81mm
• Size & Weight: 35 x 24 x 5.5mm, 5g
