Manufacturer : Team BlackSheep / Référence : A-BEIT-M10BE252Q

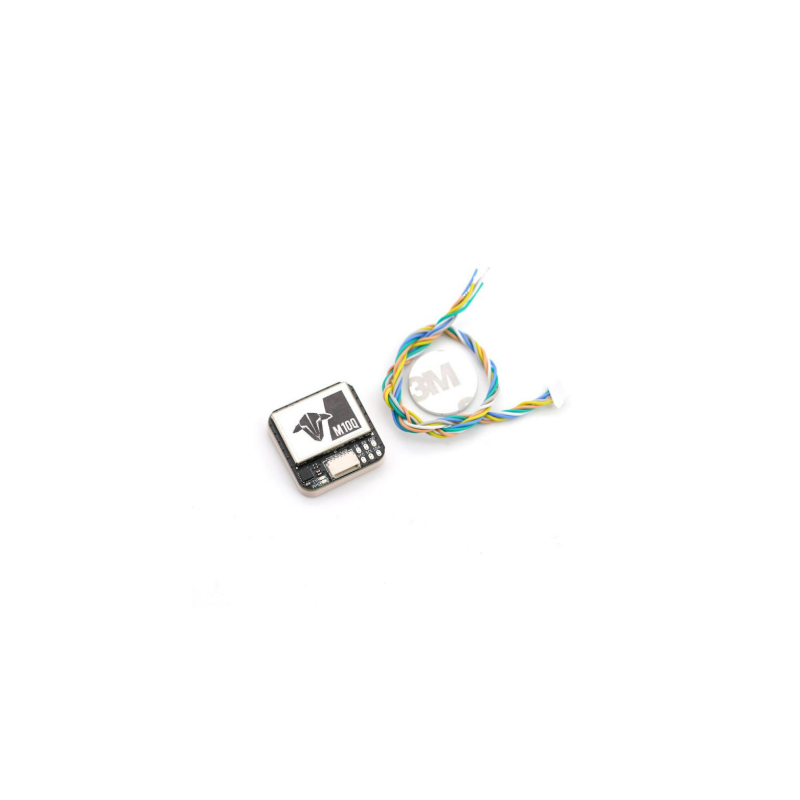

M10Q Glonass GPS Module By TBS

Hors stock
€21.90
Out-of-Stock Notify me when the product is available again

3 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

TeamBlackSheep's latest GPS module equipped with the last generation M10 chip will provide fast and stable positioning.

Its flash memory will save the configuration and thus save you valuable time for your next flights.

With 72 channels, the M10 will be able to send you all the necessary information such as speed, height or distance.

It also incorporates a QMC5883 magnetometer.

Specifications

  • Chipset - ublox UBX-M10050
  • Flash memory for saving configuration.
  • Frequency - L1, 1575.42MHz ; L2,1561.10MHZ；L3,1602.00MHZ
  • Baud Rate - 4800bps-921600bps, default 115200bps
  • Channel - N/a
  • Sensitivity - (Tracking: -166dBm) | (Capture: -160dBm) | (Cold Start - 148dBm)
  • Cold start - Average 26 seconds
  • Warm start - Average 24 seconds
  • Hot start - Average 1 second
  • Accuracy - (HorizontalPosition:Autonomous<2m average) | (SBAS < 2.0m average) | (Timepulse signal: RMS 30 ns)
  • Maximum height - 50000m
  • Maximum speed - 500 m/s
  • Maximum acceleration - ≦ 4G
  • Refresh Rate - 0.25Hz-18Hz, default 1Hz
  • Size - 25 x 25 x 7.7mm
  • Weight - 13.5g
  • Input Voltage - 5V
  • Magnetometer: QMC5883

Included

  • 1x M10 GPS module
  • 1x Cable
  • 1x 3M sticker
