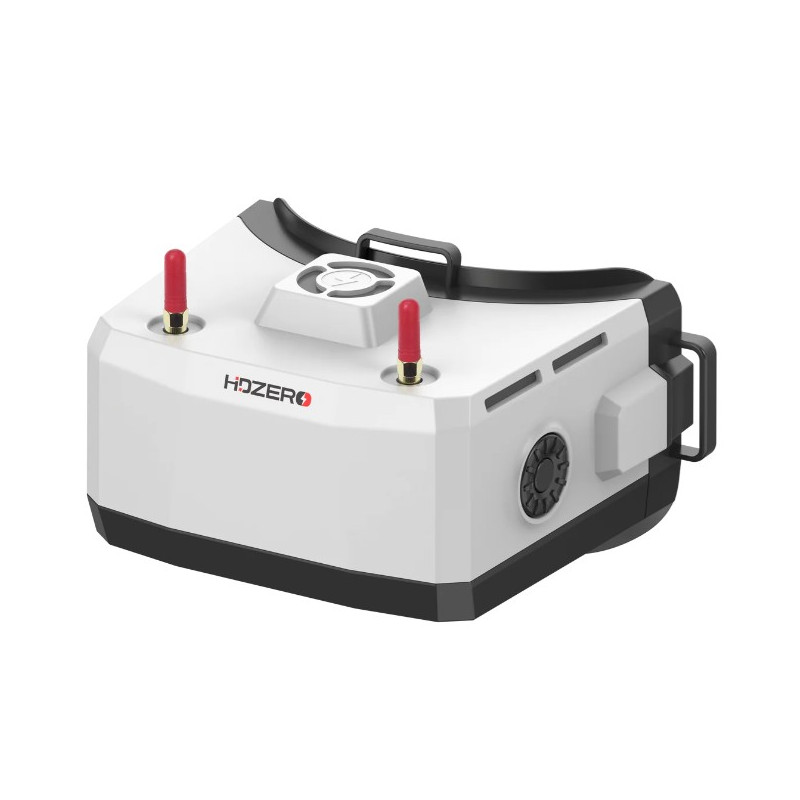

HDZero BoxPro+ FPV Goggles
Related accessories
Technical characteristics
The BoxPro HDZero FPV goggles offer exceptional performance at an unbeatable price, supporting HDZero digital, analog, and HDMI video.
This goggles features an ultra-bright 100Hz, 1800-nit LCD display for crisp images, smooth playback, and ultra-low latency.
Unlike other box goggles, the HDZero BoxPro features a 100Hz refresh rate and a 100Hz HDMI input, providing smooth video transmission with reduced latency.
Featuring a built-in high-sensitivity analog receiver and four antennas (two built-in high-gain patch antennas and two included linear SMA antennas), the BoxPro guarantees superior reception and video quality.
The BoxPro+ version brings additional Wi-Fi video streaming and ELRS backpack functionality compared to the classic BoxPro version.
Specifications
WiFi Video Streaming & ELRS Backpack (Available on BoxPro+ Only)
- WiFi video streaming to smartphones, desktops, or laptops (BoxPro+ model required).
- iPhone: connect with VLC or the iOS-optimized FPV Mate app https://fpvmate.com/
- Android: connect with VLC
- PC/Mac: connect with VLC
- ESP32 ExpressLRS backpack module for wireless integration with ELRS radios to sync video channel, DVR start/stop, and wireless head tracking (BoxPro+ model required).
Ultra-Low Latency & High-Performance Display
- Near-instantaneous video feedback with 1ms HDMI input latency, 3ms analog camera latency, and 4ms HDZero camera latency.
- 100Hz, 1800 nits ultra-bright LCD for crystal-clear visuals, even in direct sunlight.
- 56° field of view (FOV) for a sharp and immersive experience.
Comfort & Optics for All Pilots
- Eyeglasses-friendly design, so you can wear them comfortably inside the goggles.
- Optional diopter lens insert can be made to order to match your prescription and securely screwed into the faceplate for a perfect fit.
Versatile Video Support
- Integrated HDZero digital receiver with 4 antennas, supporting all HDZero modes.
- Built-in high-sensitivity analog receiver for superior analog FPV performance.
- Mini HDMI input & output for seamless external video integration.
- 3.5mm AV input & head tracker output for added connectivity and functionality.
Improved Analog Resolution and Advanced DVR & Recording Capabilities
- Improved analog video resolution with real-time deinterlacer
- Built-in H.265 DVR supports HDZero, analog, and HDMI video recording.
- Automatic and manual recording modes for user convenience.
- H.264/H.265 encoding with support for 1280x720p60, 1280x720p90, 1280x720p100, and 1920x1080p60 resolutions.
- Multiple audio sources (built-in mic, line-in, AV-in) for recording flexibility.
Optimized Power Management & Cooling
- Supports 2S-6S batteries via XT60 connector (battery not included).
- Adjustable fan speed for internal cooling and anti-fog prevention.
Open-Source Software & Customization
- Runs on a Linux-based open-source platform, allowing users to modify firmware, add custom features, and optimize performance.
- Full access to the user interface code, making it one of the most flexible FPV goggle platforms available.
- Community-driven development ensures ongoing improvements and support.
Included
- 1x HDZero BoxPro Goggle
- 2x Linear 5.8GHz SMA Antenna (with 2 inbuilt high-gain patch antennas inside the goggle)
- 1x Foam Face Pad
- 1x Adjustable Head Strap with Battery Pocket
- 1x 1200mm XT60 Power Cable
- 1x Durable Canvas Goggle Bag
- 1x Lens Cleaning Cloth
