Manufacturer : HDZero / Référence : HDZ5688/00

HDZero Halo Mini Flight Controller with True Diversity ELRS RX

5/5 (2 notifications)
En stock
€99.90
Gyro : MPU6000
Gyro : ICM42688P Gyro : MPU6000
Same day shipping

10 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

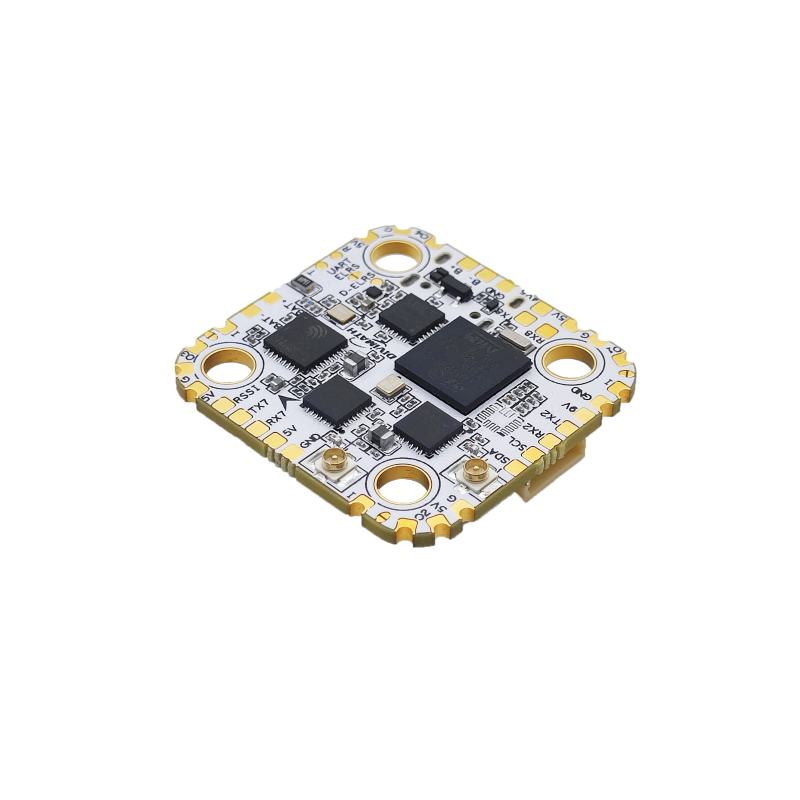

HDZero Halo Mini Flight Controller

The HDZero Halo Mini is a compact, high-performance flight controller designed for FPV racing and freestyle. Powered by the H743 MCU, it delivers robust computational capabilities and integrates a true diversity ExpressLRS (ELRS) receiver with Gemini mode, enhancing reception and link stability.

Key Features:

  • Integrated Gemini ELRS RX: Dual-frequency reception for superior link reliability
  • TXCO-stabilized ELRS RX: Ensures stable performance in high-heat environments
  • Cost-effective: Combines a $25 Gemini ELRS RX and a $65 flight controller in one unit
  • Switchable BEC Outputs: 9V/3A for VTX, 5V/4A for LEDs and peripherals
  • Optimized for Digital FPV: No analog OSD chip, designed for low-profile HDZero Race v3 VTX stacking
  • Solderless Installation: Dedicated ESC sockets (with 4A cable included) and digital VTX compatibility
  • Available Gyro Options: MPU6000 or ICM42688

The HDZero Halo Mini is the ideal choice for FPV racers and freestyle pilots looking for top-tier performance, reliability, and a sleek, space-efficient build.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

Hdzero Halo

Specifications

  • Model: HDZero Halo Flight Controller
  • Processor (CPU): STM32H743 (480MHz)
  • Gyroscope: MPU6000 or ICM42688
  • BEC Outputs:
    • DC 5V/4A
    • DC 9V/3A
    • DC 4.5V/0.5A
  • Black Box Memory: 16MB Flash
  • I2C Pads: Yes
  • UART Pads:
    • TX2/RX2
    • TX7/RX7
    • TX8/RX8
  • ESC Telemetry: RX4
  • VTX MSP UART: TX5/RX5
  • DJI HDL: RX3
  • Buzzer Pads: Yes
  • LED Strip: Parallel or Serial mode
  • USB Port: Type-C
  • Analog OSD: No
  • FC Firmware: Betaflight: HDZERO_HALO
  • Chipset: ESP32 + 2x SX1280
  • FC UART: TX1/RX1
  • True Diversity RX: Yes
  • RF Frequency: 2.4GHz
  • Max TX RF Power: 10mW
  • Antenna Interface: 2x U.FL
  • ELRS Firmware: HDZero Halo FC 2.4G True Diversity RX
  • Power Supply: 3S ~ 8S
  • Size: 29x30.5mm with 20x20 M4 mounting holes
  • Dedicated Sockets: For ESC, HDZero, and other digital VTX

Included

HDzero HAlo

Voir plus

Customer reviews

5/5 (2 notifications)
Par le 07/08/2025

Utilisé en 6S sur ma Vannystyle Pro avec ESC T-Motor 60A Mini et moteurs Vanover 1920kv V3 : le feeling en vol est incroyable. Le gyro ICM42688P est ultra fluide et précis, le quad est super verrouillé. L’ELRS intégré fonctionne parfaitement. Parfait pour les builds serrés, et franchement génial pour un premier build.

Par le 17/02/2025

ok ok
