Manufacturer : BETAFPV / Référence : 01120009

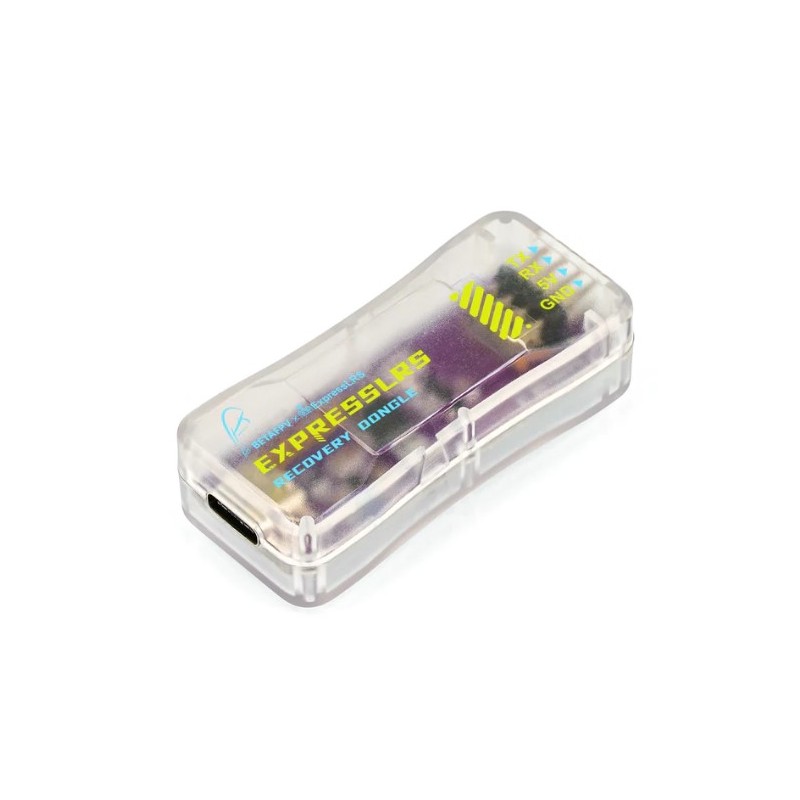

ExpressLRS Recovery Dongle By BetaFPV
Hors stock
€9.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
This BetaFPV key will allow you to repair your ELRS receiver following a brick of the latter due to improper handling.
It supports multiple computer systems such as Windows, MAC and Linux and uses a USB-C port to connect the computer.
Bullet points
- Unbrick and recover the ELRS receiver when having a failed update such as the missing bootloader.
- Soldering Free! It features spring probe pins for more convenient use. Connecting it with the ELRS receiver directly does not need to solder.
- ExpressLRS Recovery Dongle FTDI USB to TTL module is covered by the case and is more durable and portable compared with the naked board version on the market.
- Support many computer systems in the market like Windows, MAC, and Linux. This module uses a Type-C USB port for connecting the computer.
Specifications
- USB Interface: Type-C USB male connector
- Operating Voltage: 5V.
- Logic Voltage: 5V.
- 3.3V power supply output current: 400mA
- Pins output method: 2*4P-2.54mm pin header
- Serial baud rate: Up to 921600bps.
- Support USB1.1, USB2.0
- USB to Serial chip (CP2102) supports XP, win7 / win8 32bits, 64bits, win10 / 11 32bits, 64bits, Linux, MAC
