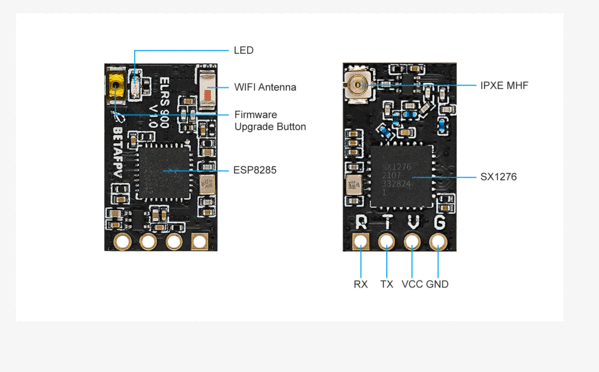

BETAFPV - ELRS Nano Receiver 868MHz

This BETAFPV receiver is based on the ExpressLRS project, an open source RC link for RC applications. ExpresseLRS aims to obtain the best link performance in terms of speed; latency and range.

Configuration and bind

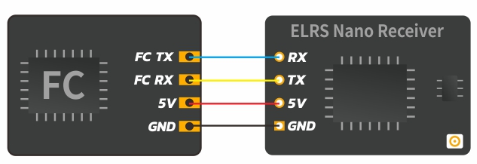

Enable the corresponding UART (e.g. UART3 below) as a Serial Rx on Betaflight Configurator "Ports" tab :

On the "Configuration" tab, select "Serial-based receiver" on the "Receiver" panel, and select "CRSF" as the protocol. Telemetry is optional here and will reduce your stick update rate due to those transmit slots being used for telemetry.

Nano receiver could enter binding status by power on/off three times.

• Plugin and unplug nano receiver three times;
• Make sure the LED is doing a quick double blink, which indicates the receiver is in bind mode;
• Make sure the RF TX module or radio transmitter enter binding status, which sends out a binding pulse;
• If the receiver has a solid light, it's bound.
