Manufacturer : BETAFPV / Référence : 01070010_3
BETAFPV - ELRS Nano TX Module 868MHz V2
En stock
€49.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The BetaFPV nano TX V2 module features many improvements for an unmatched piloting experience.
It is equipped with an innovative T-LED antenna that indicates the signal transmission and connection status of the module. With a power of up to 1W/2W, it allows stable connections for FPV races, Long Range or even professional shooting.

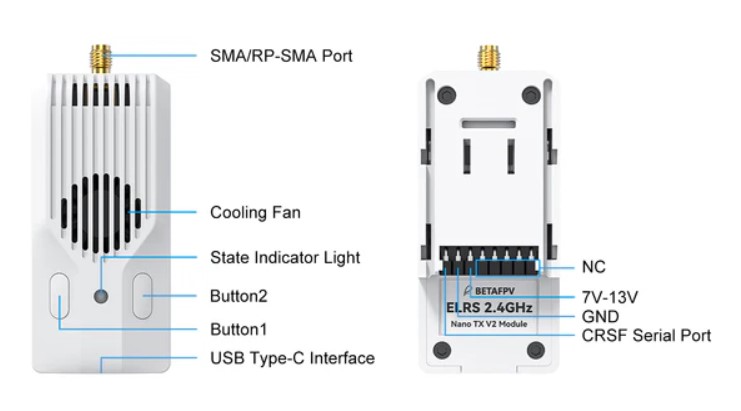

Diagram
Note: Assemble the antenna before power on, otherwise the PA chip of the nano TX module will be damaged.
*Power and distance are subject to specific regulations, be sure to respect those established in the country where you are playing.
Specifications
- Weight: 28g
- Color: White
- Antenna Connector: SMA
- RF Power(915/868MHz): 10mW/25mW/50mW/100mW/250mW/500mW/1000mW/2000mW
- Packet Rate(915/868MHz): 25Hz/50Hz/100Hz/100Hz Full/200Hz/D50
- Frequency Band: 2.4GHz ISM, 915MHz FCC, 868MHz EU
- Backpack: Support
- Input Voltage: 7V~13V DC
- Power Consumption(915/868MHz): 8V,1000mA@1000mW, 50Hz，1:128
- USB Port: Type-C
- Fan Voltage: 5V
- Default Firmware Version: ExpressLRS V3.3.0
Included
- 1x Nano TX V2 Module
- 1x T-LED Antenna
- 1x USB to Type-C Data Cable
- 1x Type-C Male to XT30U Male Power Cable
- 1x Instruction Manual
