Manufacturer : Matek / Référence : CAN-L4-PWM

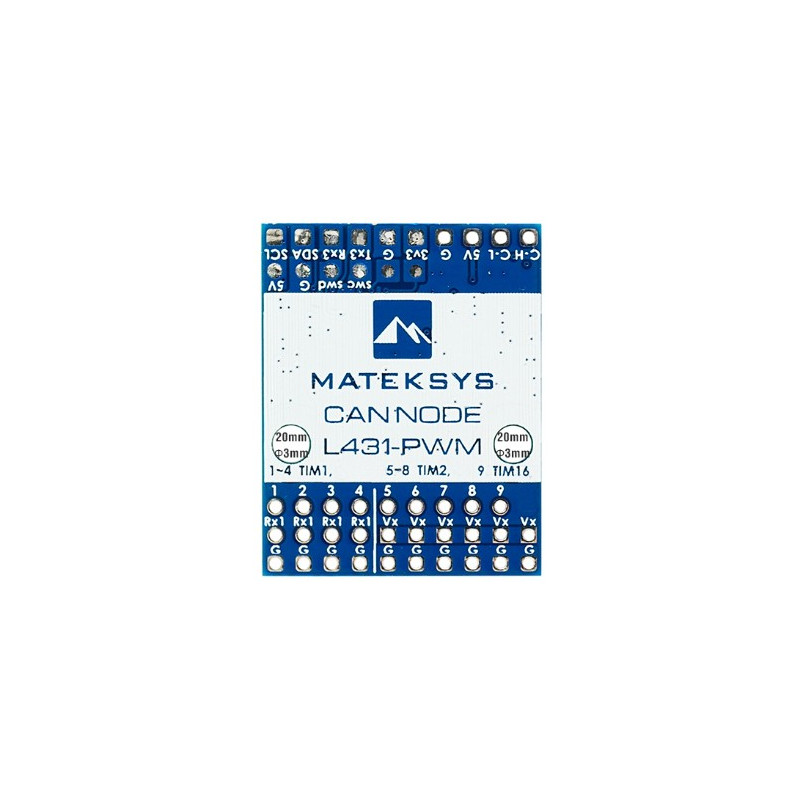

AP_Periph DroneCAN To PWM Adapter CAN-L4 By Matek

Hors stock
€15.90
Out-of-Stock Notify me when the product is available again

2 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

The Matek CAN-L4-PWM is a DroneCAN-to-PWM adapter that transforms the way you connect your components. It converts DShot-compatible ESCs into CAN ESCs while supporting full telemetry, and it also allows PWM servos to be converted into CAN servos.

Designed around an STM32L431xC MCU with 256 kB of flash memory, it ensures smooth communication through a single CAN channel using the DroneCAN protocol. It provides up to 9 PWM outputs, including 8 DShot, offering maximum flexibility for your wiring needs.

Specifications

  • MCU: STM32L431xC, 256KB Flash
  • 1x CAN, DroneCAN Protocol
  • 9x PWM outputs (8x Dshot)
  • 1.5x UARTs
  • UART1, RX1
  • UART3, Tx3/ Rx3
  • ST debug, SWCLK & SWDIO
  • Input voltage range: 4.5~5.5V  @5V pad/pin
  • Power consumption: 30mA
  • Operating Temperatures: -20~80 °C
  • “Vx” pads are for powering servos via external BEC.  “Vx” is not connected to other components on this board.
  • “Rx1” pads are for ESC Telemetry, DO NOT connect ESC BEC output to Rx1 pad.
  • Board Size: 32mm*25.4mm.  3.5g
  • Mounting: 20mm. Dia.3mm
  • ArduPilot AP_Periph  MatekL431-Dshot
  • Update via DroneCAN GUI Tool

LED

  • Blue, Fast blinking = Booting
  • Blue, Slow blinking = working
  • Red, 3.3V indicator

Included

  • 1x CAN-L4-PWM board
  • 1x JST-GH-4P to JST-Gh-4P 20cm silicon wire
