Manufacturer : Matek / Référence : CAN-L4-RC
AP_Periph CAN L4 RC Input Adapter By Matek
En stock
€13.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
This L4 RC CAN adapter from Matek is based on the ArduPilot AP_Periph firmware and allows you to turn a serial receiver into a CAN receiver.
Specifications
- MCU: STM32L431xC, 256KB Flash
- 1x CAN, DroneCAN Protocol
- 1x UART(UART3, Tx3/ Rx3)
- ST debug, SWCLK & SWDIO
- Input voltage range: 4.5~5.5V @5V pad/pin
- Power consumption: 10mA
- Operating Temperatures: -40~85 °C
- 1x JST-GH-4P(SM04B-GHS-TB) for CAN
- 2.54mm pitch holes for UART3

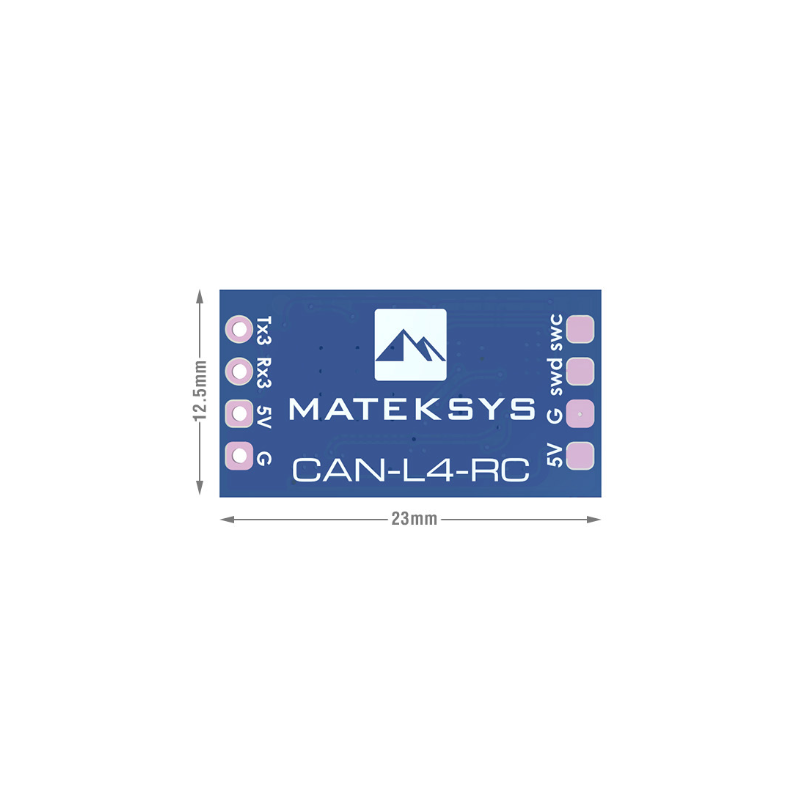

- Board Size: 23mm*12.5mm. 2.5g
- Firmware : ArduPilot AP_Periph MatekL431-RC Update via DroneCAN GUI Tool
LED
- Blue, Fast blinking = Booting
- Blue, Slow blinking = working
Included
- 1x CAN-L4-RC board
- 1x JST-GH-4P to JST-Gh-4P 20cm silicon wire
