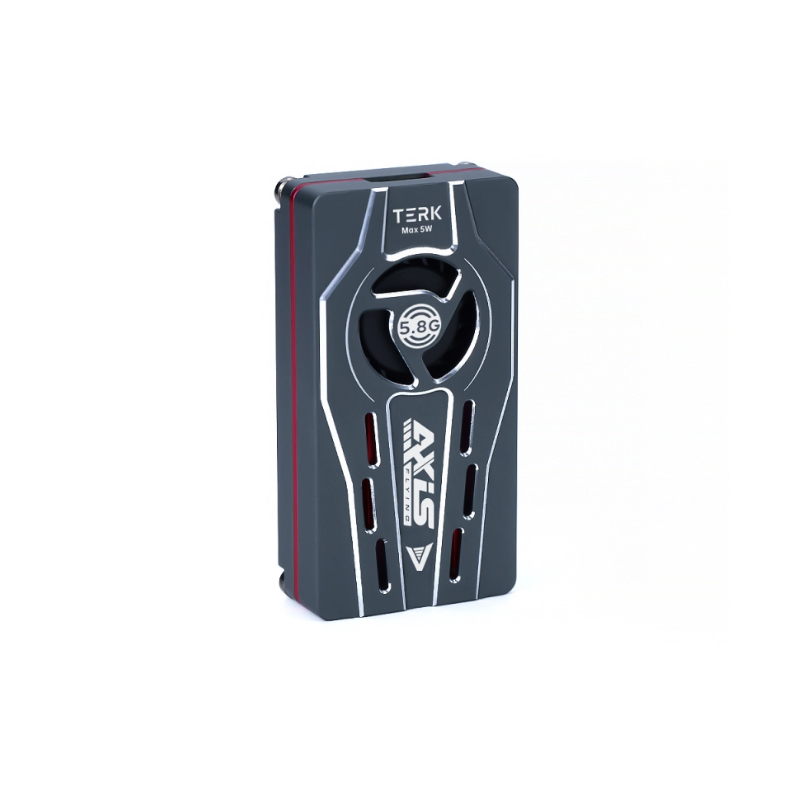

Terk 5.8G 5W VTX By AxisFlying

The TERK AxisFlying is a powerful analog VTX operating under the 5.8GHz frequency band and capable of reaching a maximum power of 5W.

It is equipped with a powerful heat sink, an integrated MIC and an LED indicator.

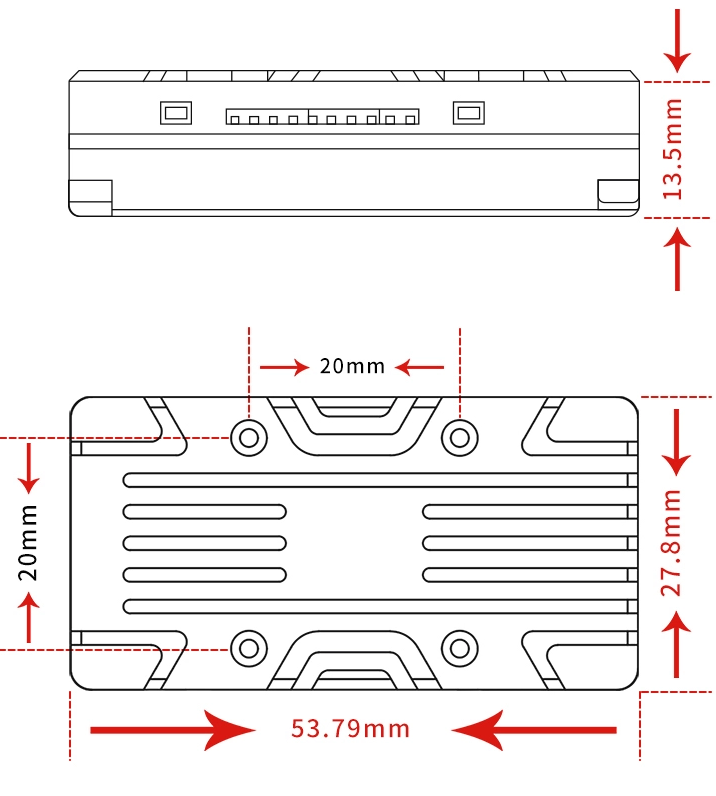

It is mounted in 20*20mm, weighs a little over 27g and has an MMCX connector.

Very easy to use, you will find only 2 buttons on the side, one for power, the other for channel selection.

LED indication Band/CH button

• Red light indicates frequency group, press 2s to switch frequency group, blinking time indicate current frequency group
• Blink 1 time for frequency group A
• Blink 2 times for frequency group B
• Blink 3 times for frequency group E
• Blink 4 times for frequency group F
• Blink 5 times for frequency group R
• Blink 6 times for frequency group L
• Blink 7 times for frequency group X
• Blue light indicates frequency point, press to switch frequency point CH1-CH8 cyclic switching

* Important note: French regulations impose a maximum power of 25mW in the 5.8 Ghz frequency, as well as dual control piloting to practice immersion flight (FPV). The responsibility of Drone-FPV-Racer cannot be engaged for any use of this material without an adequate license.
