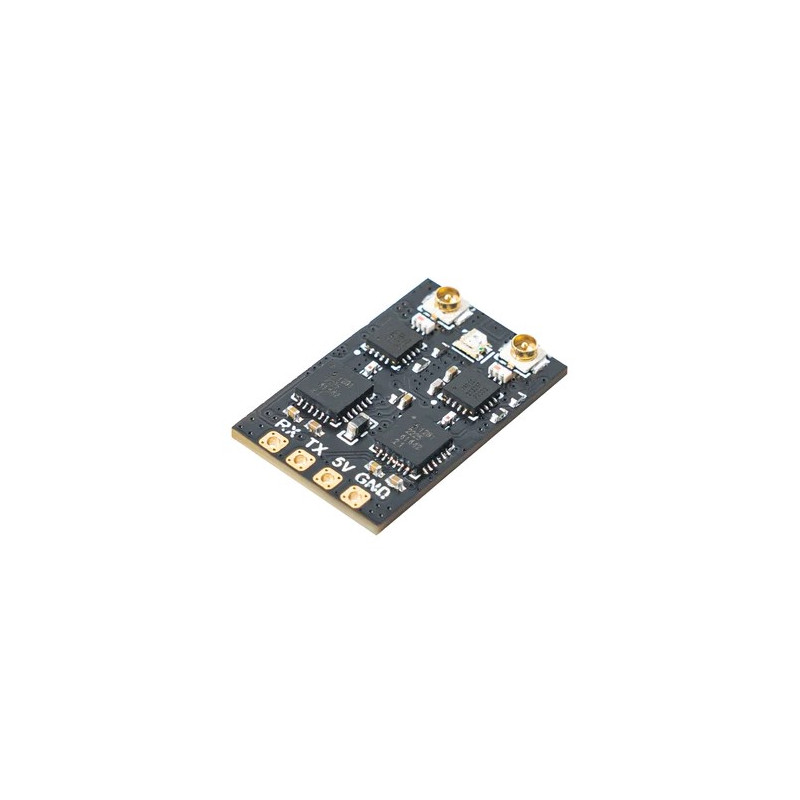

SuperD ELRS 2.4G Diversity Receiver By BetaFPV
Related accessories
Technical characteristics
This BetaFPV receiver based on ExpressLRS 2.4G project is the first True Diversity receiver which applies dual antennas.
The SuperD achieves an extremely accurate frequency rate and largely meets the reliability requirements for longrange flight.
*Power and distance are subject to specific regulations, be sure to respect those established in the country where you are playing.

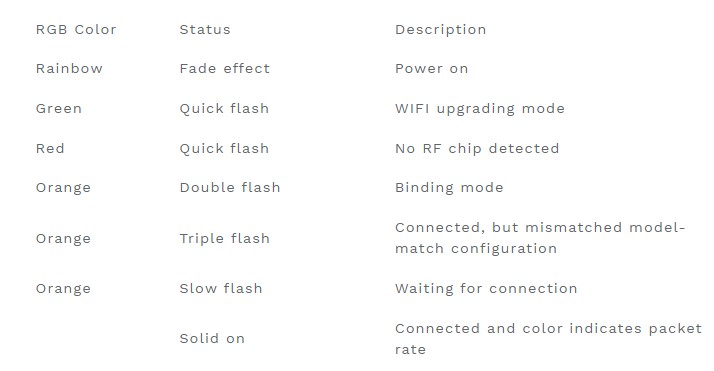

LED indicator :
Specifications
- MCU: ESP32 PICO D4, dual SX1280 (SX1281)
- Antenna Connector: IPEX MHF 1/U.FL
- RF Frequency: 2.4GHz (2400~2480MHz)
- Telemetry Power: 20dBm (100mW)
- Input Voltage: +5V DC @ “+” pad
- PCB Size: 22mm*14mm
- Weight: 1.1g excluding antenna
Included
- 1x SuperD ELRS 2.4G Diversity Receiver
- 2x BETAFPV Dipole T Antenna
- 1x Pin Header
- 1x 30AWG Silicon Wires (1 black, 1 red, 1 white, 1 yellow)
- 1x User Manual
Customer reviews
Conforme à la description, j'aurais aimé avoir le choix de la taille des antennes.
Best receiver I have tried! Highly recommended and amazing range!!
C'est le top: pas tropcher et ultra performant, se flashe les yeux fermés, ça va aussi bien sur les quads que les ailes.
TOP ! Mais la faible longueur des câbles d'antennes ne permet pas de les placer à l'endroit le plus optimal pour un 5 pouces.
parfait
fonctionne comme il se doit.
