Manufacturer : Parallax / Référence : SPEEDSTER-FRAME

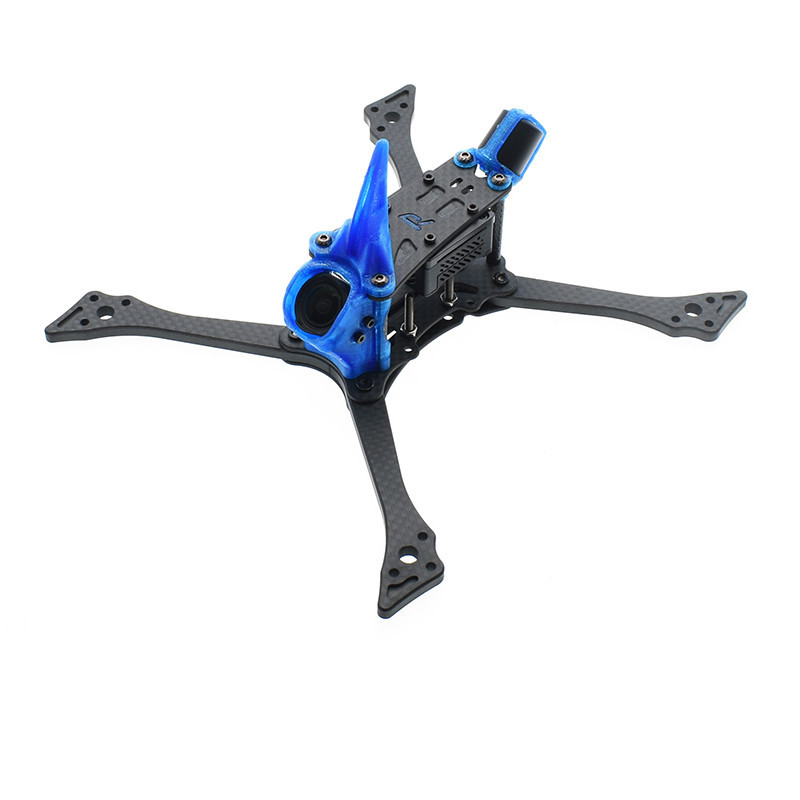

Parallax Speedster 5.1Inch Frame Kit By Parallax FPV
En stock
€54.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The Speedster is the race frame for pilots looking for ease of assembly and maintenance, safety and a good flight feeling for a relatively low weight. If you are a pilot looking for a practical, durable and versatile frame, the Speedster is for you!
Designed to provide a solution to pilots looking for a modern, easy-to-use and versatile frame, the Speedster seeks above all to optimize the space available in the frame for a motor center distance of only 200mm! This provides the maneuverability sought by race pilots in a solution suitable for pilots of all levels, adapting to many video and electronic systems.
Highlights
- Many mounting solutions
- O3 compatible
- T700 carbon quality materials and 12.9 steel screws
- Quickly changeable arm, only one screw to unscrew
- Arm key acting as a spring blade, allowing for controlled and regular play over time
- Compact chassis with moderate weight
Specifications
- Geometry: true X 200mm
- weight (carbon, screws, TPU camera mount): 80g
- Arm thickness: 5mm
- Top plate thickness: 2mm
- Bottom plate thickness: 2mm
- Middle plate thickness: 2mm
- Propeller size: 4.9" to 5.1"
- Stack compatibility: 20mm,30.5mm
- 20mm M3 mount on the top plate (convertible M2)
- VTX compatibility: air unit O3, Walksnail nano V3, HDZero Race V3, analog
- Camera compatibility: up to 20mm
- Carbon: T700 matte chamfered
- Screws: 12.9 steel screws, aluminum spacers
- Stack height: 30 or 35mm (40mm with the TPU O3 kit)
Included
- 4x Arm
- 1x Top plate
- 1x Bottom plate front
- 1x middle rear
- 1x Key
- 1x Steel screw set
- 1x Lipo pad
- 1x Strap
- 1x TPU converter M2
Note : TPU and DJI O3 not included
Type configuration
(not included)
- Motors : Pegasus 2207 2070KV
- FC : Mamba F722 mini
- ESC : Flycolor G20
- Propellers : R36 Parallax
- VTX : DJI O3 air unit
