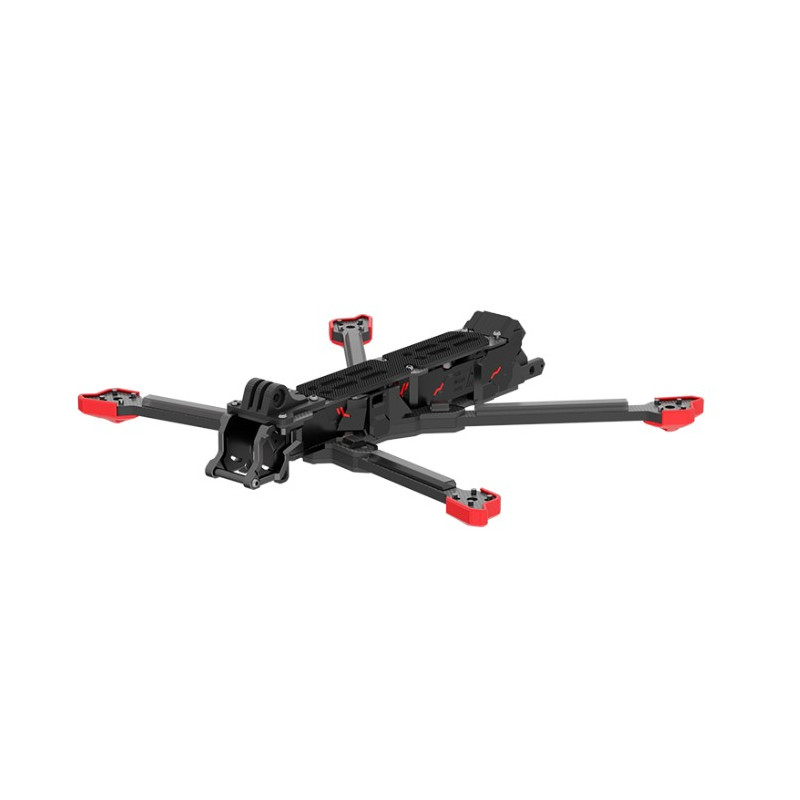

Chimera7 Pro V2 O4 Frame Kit By Iflight

Out of stock
€103.25

View More Info
This product earns you 11 loyalty points.

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Ajouter à la Wishlist
Chimera7 Pro V2 O4 Frame Kit By Iflight - Drone-FPV-racer.com

Other reliable and tested choices

Ce produit est actuellement en rupture, mais pas de panique. Nous vous proposons une sélection d’articles similaires, testés et approuvés, pour répondre aux mêmes besoins et vous permettre de finaliser votre setup sans compromis.

Detailed Description

The famous Chimera7 Pro V2, now compatible with the DJI O4 Pro Air Unit, offers exceptional stability and longer flight times, ideal for cinematic shots.

Made from ultra-rigid carbon to minimize resonance, this 7" frame pairs perfectly with 2809 motors and 7.5" propellers for smooth and versatile flights.

Specifications

Video DJI FPV
Video Analog
Video DJI O4
Model Chimera
Props Size 7"
Frame Size 250mm and +
Geometry DeadCat

Specifications

  • Wheelbase: 327mm
  • Frame Dimension: L270*W199*H34 mm
  • Arm Thickness: 6mm
  • Bottom Plate Thickness: 3mm
  • Top Plate Thickness: 2mm
  • Upper Plate Thickness: 3mm
  • Camera Plate Thickness: 3mm
  • Max Flight Stack Height: 21mm
  • Max VTX Height: 30mm
  • Flight Stack Mounting: 30*30/Φ3mm
  • Motor Mounting: 16x16mm / 19*19mm Φ3mm
  • VTX Mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm
  • Weight: 355g±5g
  • Compatibility:DJI O4 Air Unit Pro/DJI O4 Air Unit/Vista HD/BLITZ Whoop 1.6W VTX

Included

  • 1x Chimera7 Pro V2 O4 Frame Kit
  • 1x 220mm O4 MIPI Digital Video Cable
  • 2x O4 IPEX to RP-SMA Antenna Pigtails
  • 1x Dual Antenna TPU
  • 1x GoPro TPU Base Mount
  • 1x Screw Bag
  • 4x TPU Arm guard
  • 2x Anti-Slip Battery Pad
  • 2x Battery Strap

Technical Documents

Manual (2.18MB)
