Manufacturer : Flycolor / Référence : W4-FW060006-M1M1-TX1

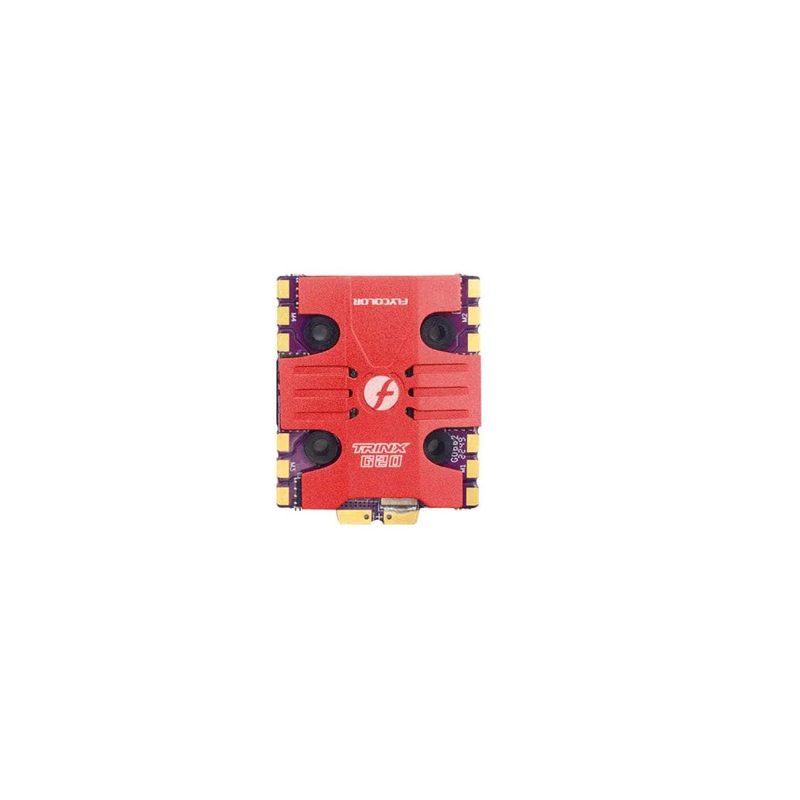

Trinx G20 20x20 4in1- 60A ESC by Flycolor

En stock
€89.90
Same day shipping

9 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

The Flycolor Trinx G20 32Bit 60A 3-6S 20x20 4in1 ESC packs powerful features into a compact 20x20mm package. It boasts a 32-bit processor, up to 60A of current, and supports 3-6S batteries for a reliable experience for high-end FPV.

Bullet Points

  • PWM frequency up to 64 MHz.
  • Optimized firmware for smoother throttle linearity and faster response.
  • Miniaturized and lightweight design.
  • Built-in current sensor and VBAT output.
  • Multiple protocols
  • Supports higher power load, more suitable for violent flight of racing drones.
  • Large soldering tabs

Specifications

  • Continuous Current: 60A
  • Burst Current: 70A (10s)
  • BEC: No BEC
  • LiPo cells: 3-6S
  • Weight: 14.4g
  • Size: 44x36x6.3mm
  • Mounting: 20x20mm (M3)
  • Configurator: BLHeliSuite32
  • Firmware: Flycolor_Raptor_5
  • MCU: STM32G0

Included

  • 1x Trinx G20 20x20 4in1- 60A ESC
  • 4x Silicone vibration absorber
  • 5x O-Ring
  • 1x Power cable+XT60
  • 1x FC/ESC connecting wire
  • 1x Low ESR capacitor
  • 1x Aluminum heat sink
