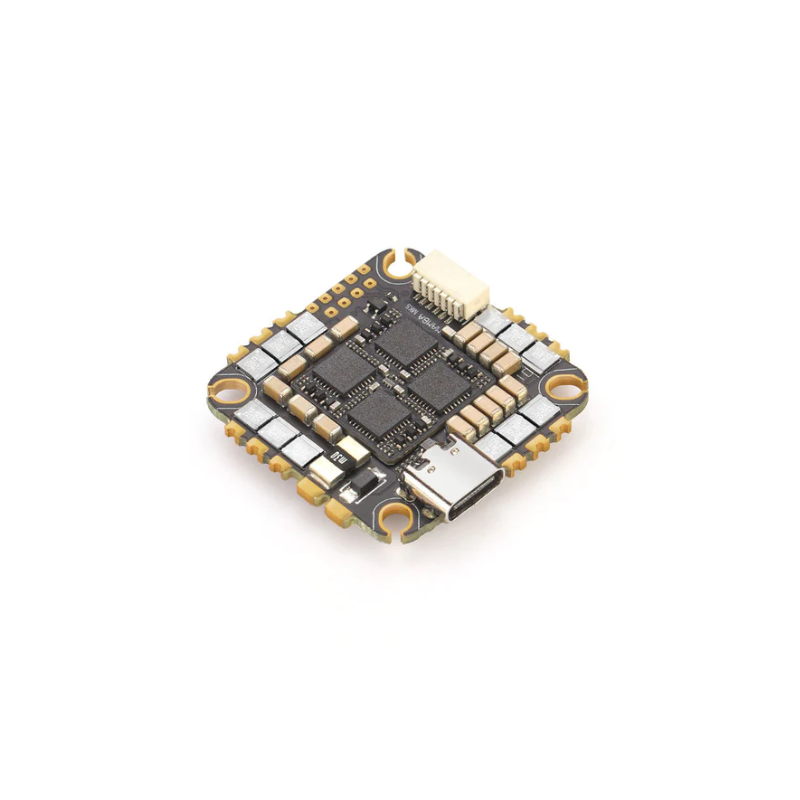

Mamba MK5 G4 Alpha 40A 6S AIO By Diatone

Out of stock
€79.08

View More Info
This product earns you 8 loyalty points.

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Ajouter à la Wishlist
Mamba MK5 G4 Alpha 40A 6S AIO By Diatone - Drone-FPV-Racer.com

Other reliable and tested choices

Ce produit est actuellement en rupture, mais pas de panique. Nous vous proposons une sélection d’articles similaires, testés et approuvés, pour répondre aux mêmes besoins et vous permettre de finaliser votre setup sans compromis.

Detailed Description

This Mamba MK5 G4 6S 40A AIO from Diatone mounts in 25.5x25.5mm and only supports Alpha, not BetaFlight.

HD and analog compatible, this AIO has an OSD, TVS protection and 4 UARTS.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

Specifications

Video DJI FPV
Video HDZero
Video Analog
Video Walksnail
Video DJI O3
Processor G4
Amp 40A
Gyro IIM-42652
ESC Firmware BLHeli_32

Specifications

  • Target： Alpha
  • MCU: 170MHz STM32G473
  • GYRO: IIM-42652
  • OSD: Yes
  • Uarts: 4 Set
  • Motor Signal:4 Set
  • ESC Soft: Dshot300/600/1200/2400
  • Power Led: Yes
  • LED Controller: Yes
  • AIR UNIT Port: Yes
  • Buzz: Yes
  • Input: 4~6S Lipo (14.8~25.2V)
  • BEC Protection: Yes
  • Receiver Protection: Yes
  • TVS Protection: Yes
  • BEC: 10V 2A& 5V 2A
  • Mounting size: 25.5×25.5mm/M2
  • Overall dimensions: 35×34.5×6.5mm
  • Input: 4~6S Lipo (14.8~25.2V)
  • Continue Current: 40A×4
  • Burst current: 45A (10S)
  • Target：BLHeli_32 MAMBA F40_128K
  • SOFT: Dshot300/600/1200/2400
  • PWM:24~128K

Included

  • 1x High Frequency 470uF/35V
  • 1x AIR UNIT sh1.0
  • 2x 16AWG 60mm
  • 1x AMASS Original XT60
