Mamba MK4 F722 Mini Reactor 44 Stack By Diatone

Name: Mamba MK4 F722 Mini Reactor 44 Stack By Diatone
Brand: Diatone
SKU: JH61611
Price: 87.42 EUR
Availability: OutOfStock

Out of stock

€87.42

View More Info

Quantity

This product earns you 9 loyalty points.

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

I agree to receive an email notification when the item is back in stock.

Mamba MK4 F722 Mini Reactor 44 Stack By Diatone - Drone-FPV-Racer.com

Other reliable and tested choices

Ce produit est actuellement en rupture, mais pas de panique. Nous vous proposons une sélection d’articles similaires, testés et approuvés, pour répondre aux mêmes besoins et vous permettre de finaliser votre setup sans compromis.

In stock

Argus Pro ECO F405 8S 80A BLHeli_32 Stack By AxisFlying

Amp : 80A
Processor : F4
ESC Firmware : BLHeli_32
Mount Size : 30.5x30.5mm

€120.75

In stock

Argus Pro ECO F405 8S 80A Bluejay Stack By AxisFlying

Amp : 80A
Processor : F4
ESC Firmware : Bluejay
Mount Size : 30.5x30.5mm

€112.42

- 10%

In stock

Xrotor F7 65A Lite Stack By Hobbywing

Amp : 65A
Processor : F7
ESC Firmware : BLHeli_S
Mount Size : 30.5x30.5mm

€41.58 €37.43

In stock

Borg 5S RX F435 60RS 20x20 Stack By Iflight

Amp : 60A
Processor : F4
ESC Firmware : BLHeli_32
Mount Size : 20x20mm

€79.08

In stock

Borg Mini F7 8S 60A Stack By Iflight

Amp : 60A
Processor : F7
ESC Firmware : BLHeli_32
Mount Size : 20x20mm

€74.08

Detailed Description

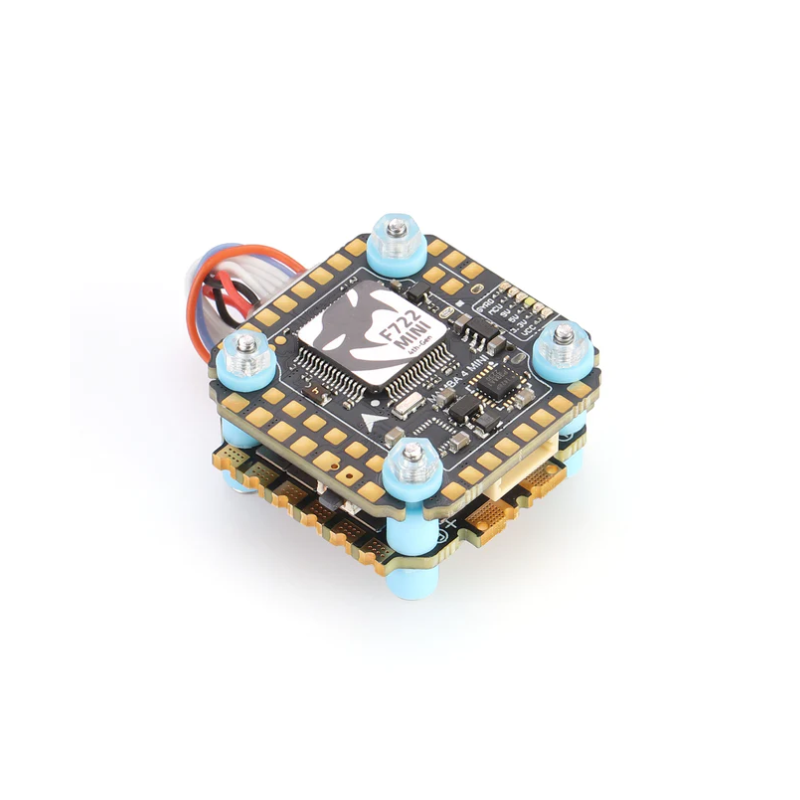

This Mamba MK4 F722 Mini Reactor 44 stack from Diatone has an ICM42688 gyro, an OSD, a barometer as well as 6 UARTS.

The Reactor 44 ESC supports 4-6S voltage.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

MK4F722MINI-01_406eab1f-b764-4dd7-8a5c-a938ee722d43_700x.jpg?v=1655347204

Specifications

Video HDZero

Video Analog

Video Walksnail

Video DJI O3

Video DJI FPV

Processor F7

Amp 40A

Amp 45A

Gyro ICM42688-P

ESC Firmware BLHeli_32

ESC Reactor 44

Input voltage: 4 ~ 6S Lipo (16.8V ~ 25.2V)
Continuous current: 44A × 4
Burst: 54A (10S)
BEC : NO
Target: BLHeli_32 MAMBA5_Reactor_44
Soft : DSHOT300/600/1200/MAX2400 (FETTEC)
PWM : 24~128k
Mounting : 20x20mm, M2

Included

1x MK4 F722 MINI FC
1x Reactor 44 ESC
5x Silicone damper M3
5x Silicone damper M2
5x M3 ESC insulation column
5x M2 ESC insulation column
1x 8pin single-ended cable for FC
2x 8pin cable
1x 6pin cable for air unit
