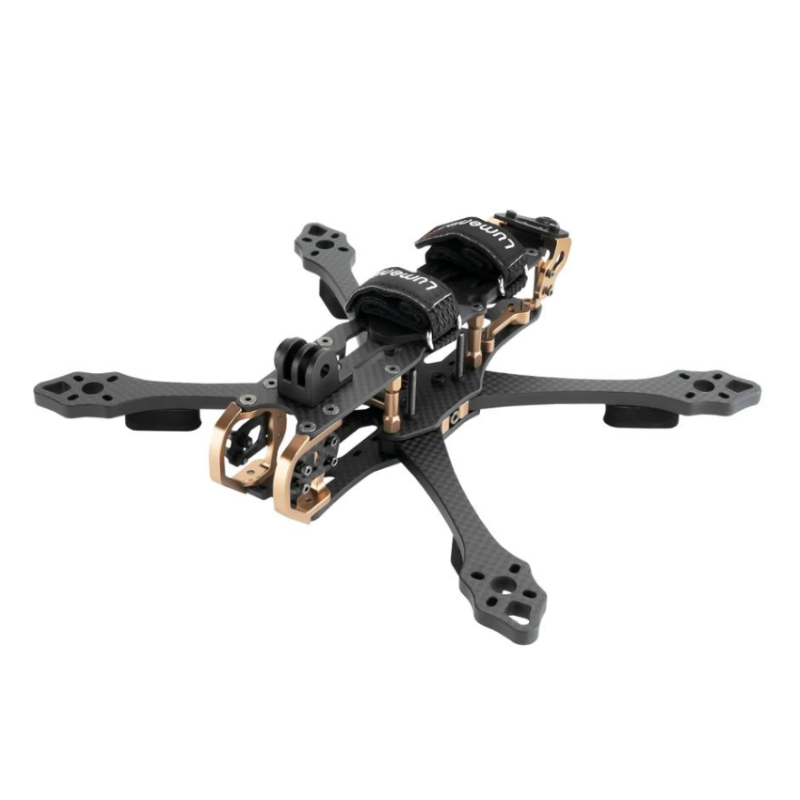

Lumenier QAV-S 2 JohnnyFPV SE 5” Frame Kit
Related accessories
Technical characteristics
Improve your FPV experience with this Lumenier QAV-S 2 special edition JohnnyFPV frame, when innovation meets performance!
Featuring an "X-Lock" arm retention mechanism with side lock, this 5" frame promises rigidity, ease of use and convenient transport.

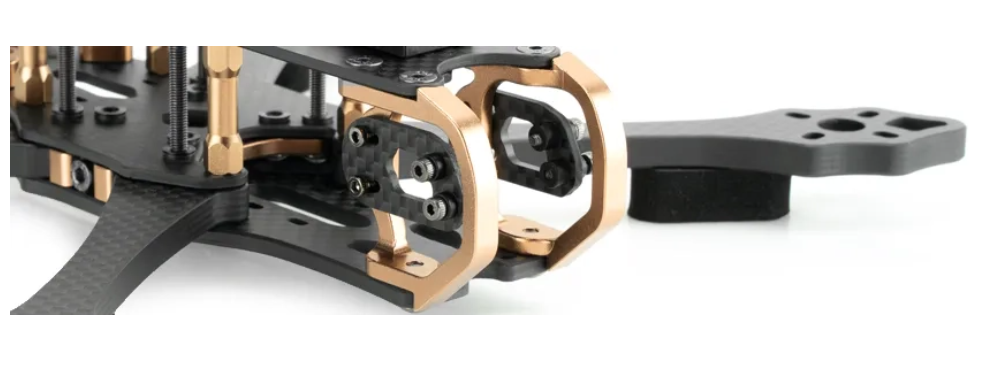

Aluminum FPV Camera Guard ensures superior camera support with customizable carbon plates compatible with various cameras.
In addition to allowing you to capture GoPro footage via the injection molded mount, this QAV-S 2 has an O3 compatible mounting system, made entirely of 5mm aluminum for optimal wire routing.

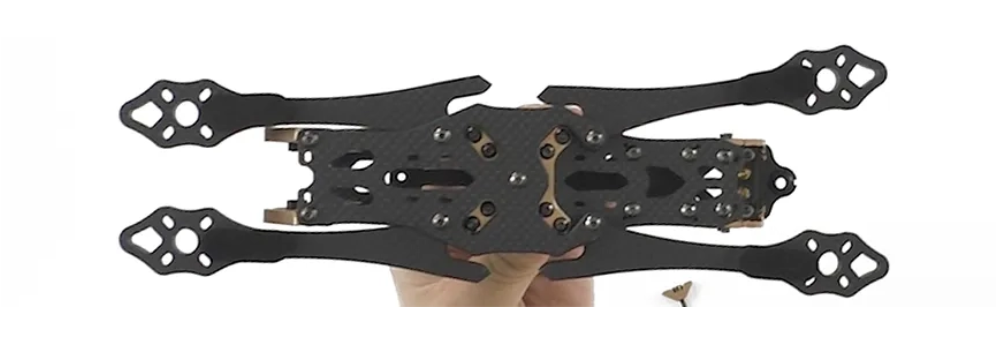

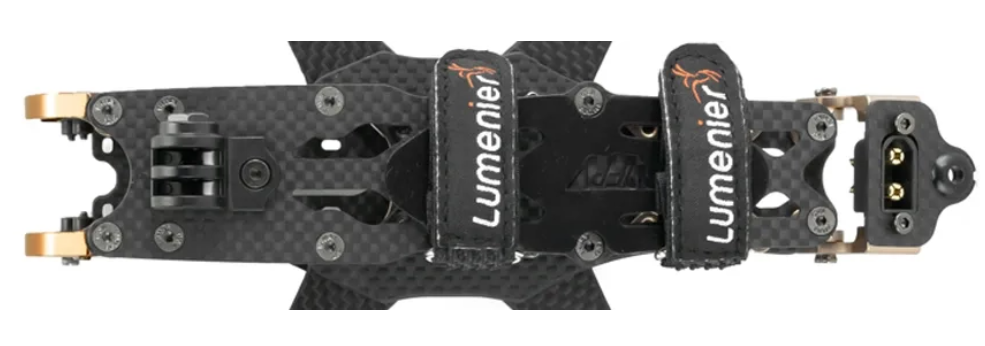

With 6mm thick arms, the frame achieves an unrivaled balance between durability and weight (~133g), the adjustable XT60 aluminum socket and the rear accessory holder offer various connection options as well as the ability to add antennas, GPS and rear-facing action cameras.
Note : The new QAV-S 2 arms will work with the original QAV-S frame, but the original QAV-S arms will not work with the new QAV-S 2 frame.
Features
- Made in Collaboration with expert FPV pilot JohnnyFPV
- Frame made of High-Quality Lumenier components

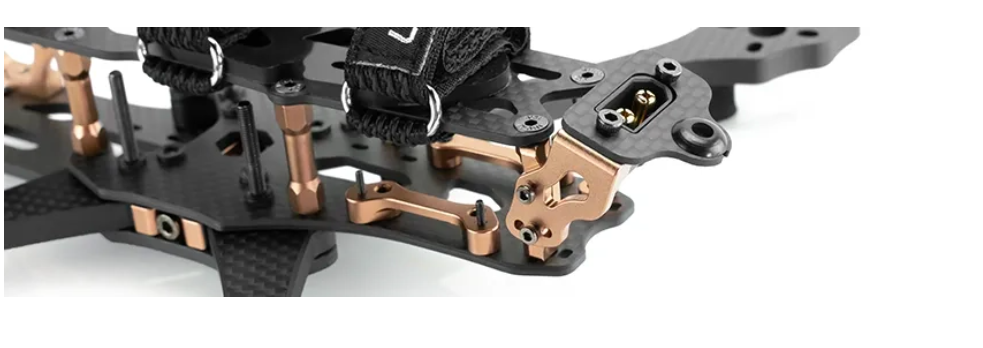

- Adjustable Aluminum XT60 and Accessory Mount
- Backward-compatible mounting patterns
- Aluminum FPV Camera Protection
- Balanced Durability and Weight
- Injection-Molded GoPro Mount
- O3 Compatible Mounting
- X-Lock Arm Retention
Specifications
- Rear Stack Dimensions: 20x20 (potentially 30x30 with adapter)
- Custom Parts: 6061 Aluminum (Bronze Gold)

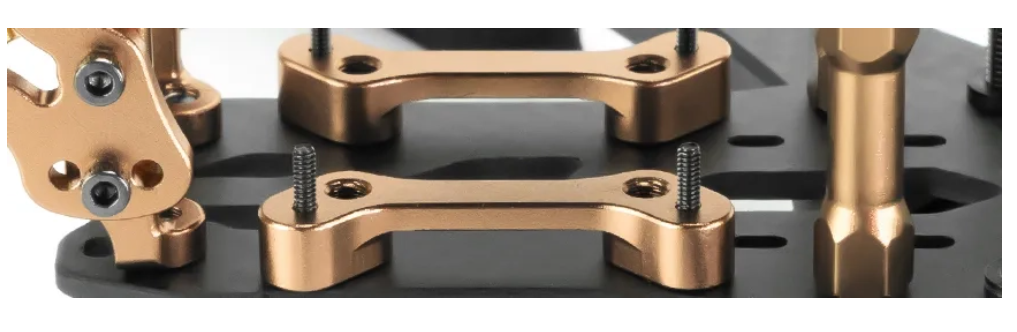

- Standoffs: 7075 Aluminum (Bronze Gold)
- Screws: Black Zinc Steel 12.9 grade
- Weight: 133g (without accessories)
- Middle Stack Dimensions: 30x30
- Arm: 6mm 3K Carbon Fiber
- Frame Size: 220mm
Recommend Parts
(Not Included)
- VTX : DJI O3 Air unit
- Stack : Argus F722 55A
- Propellers : HQProp J40
- Battery: 6S 1550mAh
- Motor : 2306 1750~2550KV
Included
- 1x JohnnyFPV QAV-S 2 Rear GoPro Mount Plate Dual Antenna
- 1x JohnnyFPV QAV-S 2 Rear GPS Dual Antenna Mount Plate
- 1x JohnnyFPV QAV-S 2 Battery Pad (Black Silicon Rubber)
- 1x JohnnyFPV QAV-S 2 Rear Adjustable Mount Right
- 2x JohnnyFPV QAV-S 2 Camera Plate for Grommets
- 1x JohnnyFPV QAV-S 2 Rear Adjustable Mount Left
- 1x JohnnyFPV QAV-S 2 Rear GPS XT60 Mount Plate
- 1x JohnnyFPV QAV-S 2 20mm Camera Plate Right
- 1x JohnnyFPV QAV-S 2 20mm Camera Plate Left
- 1x JohnnyFPV QAV-S 2 Rear GoPro Mount Plate
- 1x JohnnyFPV QAV-S 2 Rear FPV Antenna Plate
- 1x JohnnyFPV QAV-S 2 Pro Mount Spacer Plate
- 1x JohnnyFPV QAV-S 2 Rear Base Mount Right
- 1x JohnnyFPV QAV-S 2 Aluminum Guard Right
- 1x 14 Gauge Silicon Wire (Pair, Red and Black)
- 1x JohnnyFPV QAV-S 2 6mm FC Isolator 6mm
- 1x JohnnyFPV QAV-S 2 Rear Base Mount Left
- 1x JohnnyFPV QAV-S 2 Aluminum Guard Left
- 2x JohnnyFPV QAV-S 2 6mm Arm Wedge
- 1x JohnnyFPV QAV-S 2 Split Plate Front
- 1x JohnnyFPV QAV-S 2 Split Plate Rear
- 1x Lumenier QAV-PRO Gopro Mount
- 4x JohnnyFPV QAV-S 2 5 Inch Arm
- 2x 5mm O3 Air Unit Mount 20mm
- 1x JohnnyFPV QAV-S 2 Top Plate
- 2x Heatshrink 5mm Diameter
- 2x Lumenier Battery Strap
- 4x Knurled Standoff
- 1x XT60E-M (Black)
- 1x Hardware Set
- 4x Foam Pads
