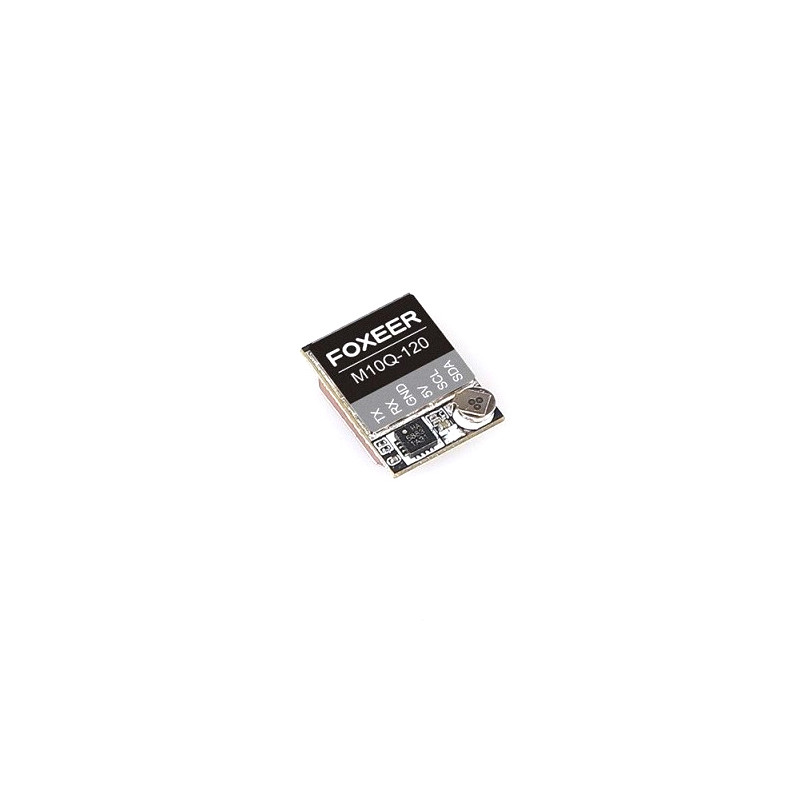

M10Q 120 GPS 5883 w/ Compass By Foxeer

Out of stock
€18.25

View More Info
This product earns you 2 loyalty points.

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Ajouter à la Wishlist
M10Q 120 GPS 5883 w/ Compass By Foxeer - Drone-FPV-racer.com

Detailed Description

The Foxeer M10Q GPS has a QMC5883 compass and is GPS, GLONASS and Galileo compatible.

Very compact and very light, it will adapt perfectly to your drone, whatever the size.

Use the M10Q 120 to find your quad following a crash thanks to the last recorded location.

Specifications

Compass SR Micro
Compass With compass

Specifications

  • Chip : M10(10th Generation Chip)
  • Frequency : GPS L1GLONASS L1BDS B1GALILEO ESBAS L1QZSS L1
  • Input Voltage : 5V
  • Antenna : Ceramic Antenna
  • Channel : 72
  • Battery : Build-in
  • Compass : QMC5883
  • Compass Orientation : Plug facing direction of flight and obviously antenna up, BF: CW 180° Flip
  • Baud Rate : 115200bps
  • Protocol Dual : NMEA/UBLOX
  • Output Frequency : 1Hz-10Hz,10Hz default
  • Speed Accuracy : 0.05m/s
  • Horizontal Positioning Accuracy : 2D ACC1.5m(outdoor)
  • Receiver Sensitivity : Trace -166dBm; Capture -160dBm
  • Dynamic Characteristics : Height 50000m; Speed 500m/s; Acceleration 4G
  • Operating Temperature : -40C-+85C
  • Storage temperature : -40C-+105C
  • Weight : 2.7g
  • Size : 12.5*17*5mm

Included

  • 1x M10Q 120 GPS module
  • 1x Set of cables
