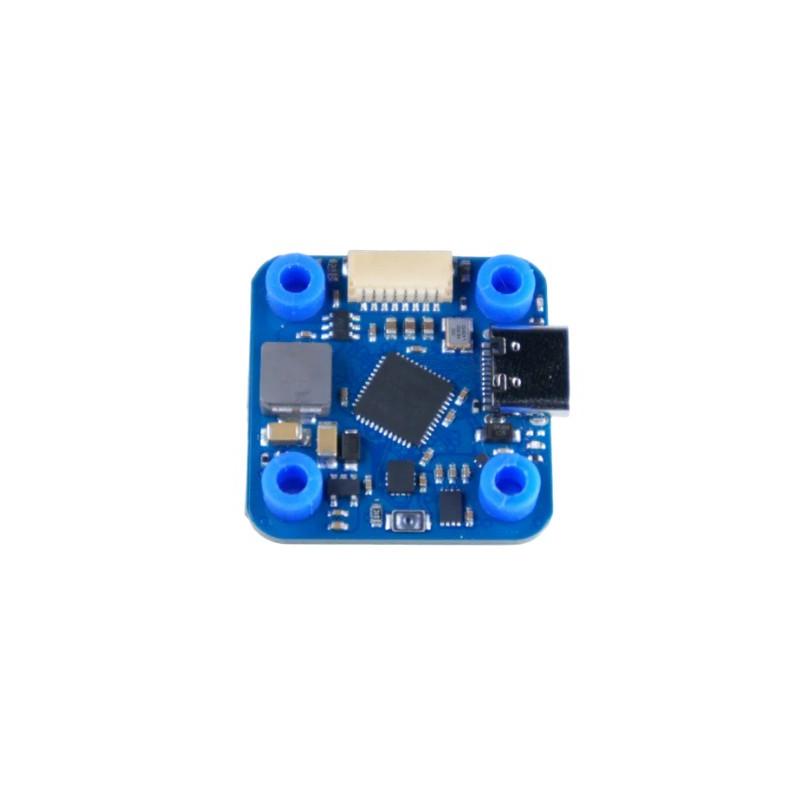

Bastille Race Flight Controller By Lunpid

In stock
€33.25

Arthur, founder of Lunpid and a top-level FPV pilot, brings his elite racing experience to product design. As a two-time Junior French Champion and member of the 4th-place team at the 2023 FPV World Championship, he ensures every Lunpid component is not only high-performing but also built to withstand real-world racing conditions.

At Lunpid, reliability is the core of everything we build. By assembling our PCBs in-house with our own Pick and Place machine in France, they maintain full control over production, testing, and quality. This hands-on approach ensures consistent performance, quick issue detection, and real-world validation. Every ESC, flight controller, and receiver they ship goes through a process we fully understand—because when you're pushing your gear to the limit, reliability shouldn't be a question.

View More Info
This product earns you 4 loyalty points.

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

100% secure payment with

Paypal
Paypal 4x 4X PayPal
Alma 2X 3X 4X
Ajouter à la Wishlist
Bastille Race Flight Controller By Lunpid - Drone-FPV-Racer.com

Detailed Description

The Bastille Race flight controller from Lunpid is engineered for pilots who demand uncompromising performance and reliability. Designed specifically for freestyle and high-performance builds, it features a powerful STM32G4 processor paired with a precision ICM-42688-P gyroscope, powered by a dedicated 1.8V regulated supply for optimal stability and ultra-low noise.

Its 400 kHz low-noise BEC ensures rock-solid gyro stability, even under intense flight conditions. The board supports a wide input range of 2 to 12S (6V–51V), making it perfectly suited for both standard and high-voltage setups. A 5V 3A BEC provides stable power to your racing VTX, while VBAT passthrough allows seamless use of freestyle-style VTX systems. It also includes a 3.3V output, expanding compatibility with a wide range of peripherals.

Built for modern digital setups, the Bastille Race offers HD OSD only, and features 5 UARTs plus 1 I²C, giving you the connectivity needed for GPS, receivers, VTXs, and other components without compromise.

With a 16 Mbit/s Blackbox, it ensures high-speed logging for detailed flight data analysis. The board fits a standard 20x20mm layout, making it a drop-in upgrade for most frames.

The Lunpid Bastille Freestyle isn’t just a flight controller—it’s a precision-tuned tool built to allow your builds to be fast as possible.

Note: Please note that the FC does not have an integrated analog OSD chip, so it is not compatible with analog VTXs.

Specifications

Video DJI FPV
Video HDZero
Video Walksnail
Video DJI O3
Video DJI O4
Processor G4
Voltage 12S
Gyro ICM42688-P
Barometer Without Baro
Mount Size 20x20mm

Specifications

  • ICM-42688-P gyro with dedicated 1.8V power regulation
  • STM32G4 processor
  • Full assortment of soldering pads on one side for a clean install.
  • 2 ~ 12S (6V ~ 51V) voltage range
  • 3A 5V BEC great for Race VTX.
  • VBAT passthrough for Freestyle VTX.
  • HD OSD Only
  • Great connectivity: 5 UART* + 1 I²C
  • 3.3V output
  • 16Mbit blackbox
  • 20x20mm format
  • UART3 is half duplex and reserved for ESC Telemetry RX.

Included

  • 1x FC Bastille Race
