Bastille Freestyle Flight Controller By Lunpid
Related accessories
Technical characteristics
Arthur, founder of Lunpid and a top-level FPV pilot, brings his elite racing experience to product design. As a two-time Junior French Champion and member of the 4th-place team at the 2023 FPV World Championship, he ensures every Lunpid component is not only high-performing but also built to withstand real-world racing conditions.
At Lunpid, reliability is the core of everything we build. By assembling our PCBs in-house with our own Pick and Place machine in France, Lunpid maintain full control over production, testing, and quality. This hands-on approach ensures consistent performance, quick issue detection, and real-world validation. Every ESC, flight controller, and receiver they ship goes through a process we fully understand—because when you're pushing your gear to the limit, reliability shouldn't be a question.

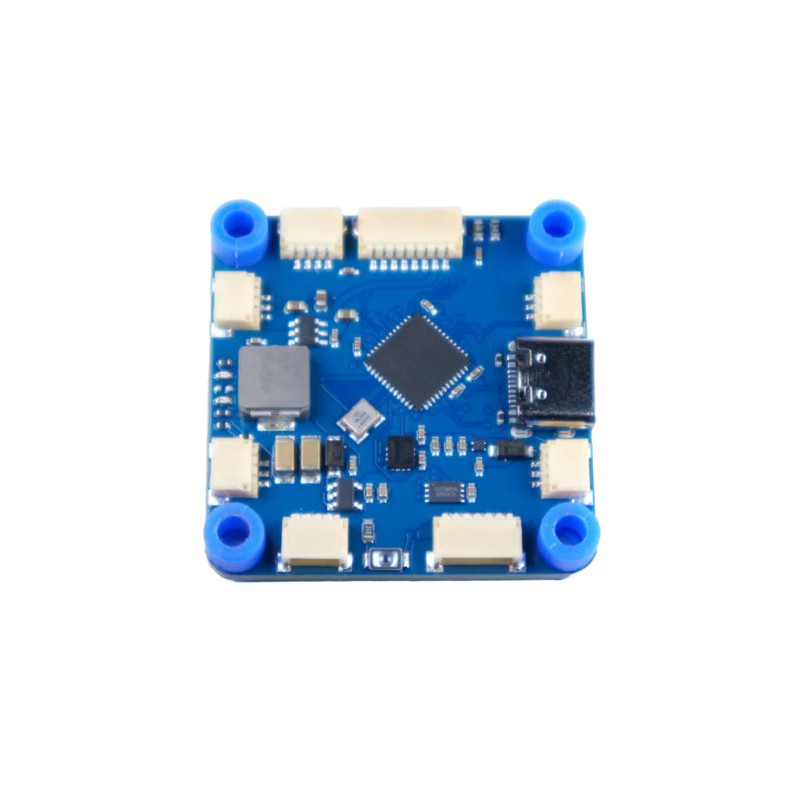

The Bastille Freestyle flight controller from Lunpid is engineered for pilots who demand uncompromising performance and reliability. Designed specifically for freestyle and high-performance builds, it features a powerful STM32G4 processor paired with a precision ICM-42688-P gyroscope, powered by a dedicated 1.8V regulated supply for optimal stability and ultra-low noise.
Its 400 kHz low-noise BEC ensures rock-solid gyro stability, even under intense flight conditions. The board supports a wide input range of 2 to 12S (6V–51V), making it perfectly suited for both standard and high-voltage setups. A 5V 3A BEC provides stable power to your racing VTX, while VBAT passthrough allows seamless use of freestyle-style VTX systems. It also includes a 3.3V output, expanding compatibility with a wide range of peripherals.
Built for modern digital setups, the Bastille Freestyle offers HD OSD only, and features 5 UARTs plus 1 I²C, giving you the connectivity needed for GPS, receivers, VTXs, and other components without compromise. For clean, no-fuss builds, it comes with ESC, LED, RX, and VTX connectors—no soldering required—and a full solder pad layout on one side, streamlining the installation process.
With a 16 Mbit/s Blackbox, it ensures high-speed logging for detailed flight data analysis. The board fits a standard 30.5 x 30.5 mm layout, making it a drop-in upgrade for most frames.
The Lunpid Bastille Freestyle isn’t just a flight controller—it’s a precision-tuned tool built to elevate your flying experience with power, stability, and clean integration at every level.
Note: Please note that the FC does not have an integrated analog OSD chip, so it is not compatible with analog VTXs.
Specifications
- ICM-42688-P gyro with dedicated 1.8V power regulation
- STM32G4 processor
- Solder-less ESC, LEDs, RX and VTX headers.
- Full assortment of soldering pads on one side for a clean install.
- 2 ~ 12S (6V ~ 51V) voltage range
- 3A 5V BEC great for Race VTX.
- VBAT passthrough for Freestyle VTX.
- HD OSD Only
- Great connectivity: 5 UART* + 1 I²C
- 3.3V output
- 16Mbit blackbox
- 30.5×30.5mm format
- UART3 is half duplex and reserved for ESC Telemetry RX.
Included
- 1x FC Bastille Freestyle
