Detailed Description

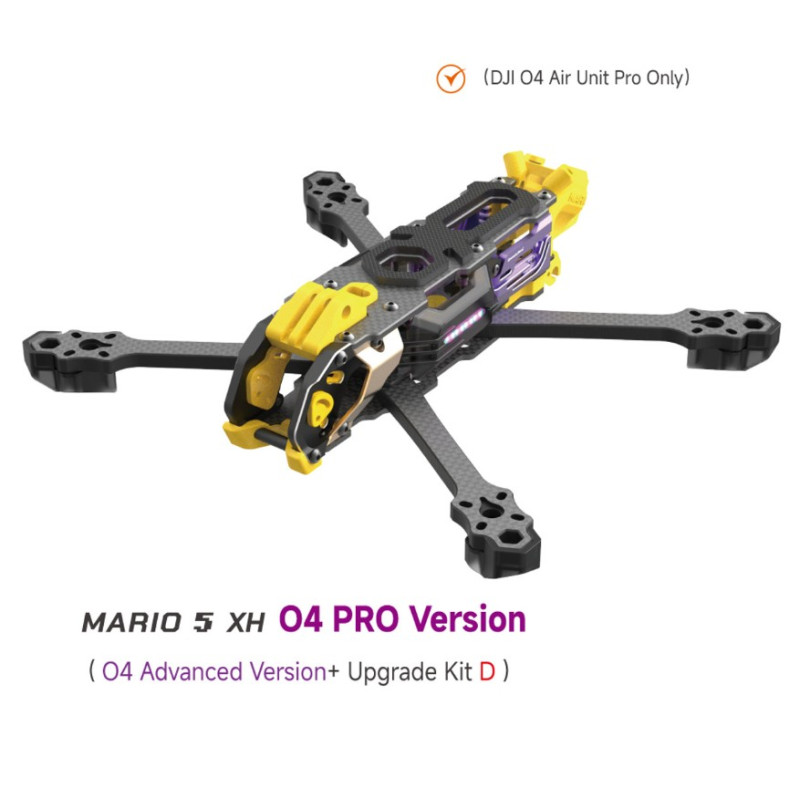

Fly free with the Mario, 5" frame by Lema fpv & SpeedyBee.

This XH frame, ideal for a GoPro, is compatible with the DJI O4 Pro air unit and DJI O3.

Made of T300 3K carbon, the Mario frame can accommodate a 30.5x30.5mm stack, a 20x20 or 25.5x25.5mm VTX and 5.1" max propellers.

Specifications

Video DJI O4
Model Mario
Props Size 5"
Frame Size 200-250mm
Geometry X

Specifications

  • Wheelbase : 226mm
  • Weight (3D Printed Parts Excluded) : 126 ±5g
  • Weight (3D Printed Parts and Injection) : 167±5g
  • Top Plate Thickness : 2.5mm(T300 3K)
  • Middle Plate Thickness : 2.0mm(T300 3K)
  • Bottom Plate Thickness : 2.5mm(T300 3K)
  • Arm Thickness : 6mm(T300 3K)
  • Camera Mounting Screw : 7mm
  • 3D Printed Parts : Yellow TPU
  • Battery Anti-Slip Pad : Silicone 3mm
  • Motor Spring Hole Position : Φ8mm
  • Compatible Propeller Size : Max 5.1 Inch
  • Motor Mounting Hole Distance : 16-19mm
  • FC Mounting Hole : 30.5x30.5(M3)
  • VTX Mounting Hole : 20x20(M2) / 25.5x25.5(M2)
  • Head Material : Aviation Aluminum Alloy
  • Aluminum Column Material : 7075 D5*23mm/D46*22mm
  • Internal Mounting Height : 23-31mm
  • Receiver Installation Space : 25*13*6mm
  • Suitable Capacitor Size : Φ10mm*20mm
  • GPS Installation Size : 18*18*7

Bullet points

  • XH geometry
  • Ideal for installing a GoPro
  • Aluminum alloy head
  • DJI O4 Pro and DJI O3 compatible
  • Selectable dual feed to adjust center of gravity

Included

  • 1x Mario 5 frame
  • 1x Upgrade kit D
  • 1x Set of TPU parts
  • 1x Hardware set
  • 1x SMA / UFL antenna
