Manufacturer : NewBeeDrone / Référence : 01AB31+00AI26+C005

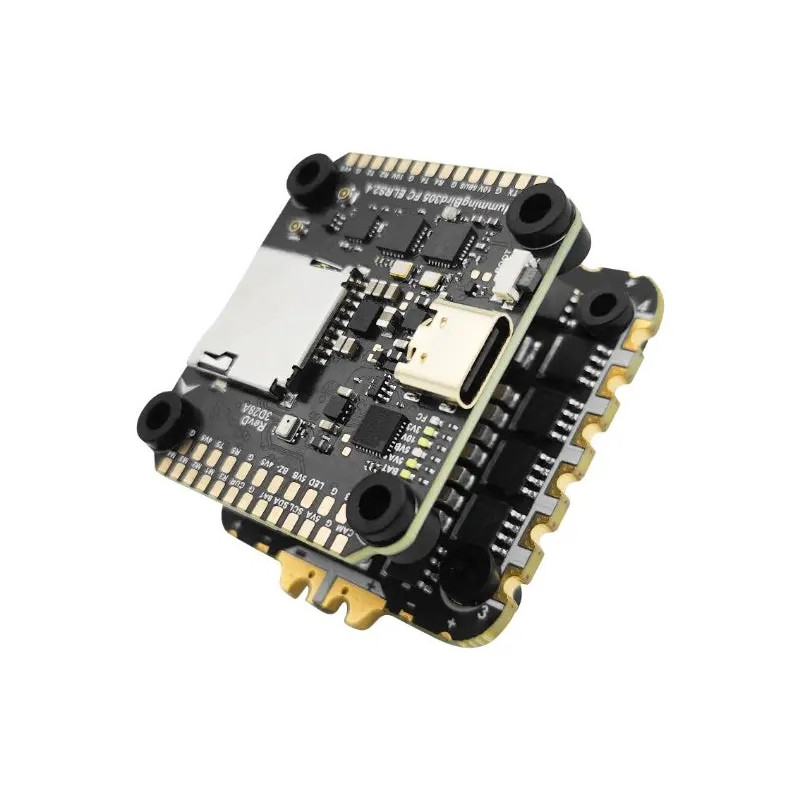

Hummingbird 305 30x30 F722 80A ELRS 2.4G Stack By NewBeeDrone
Hors stock
€126.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The Hummingbird 305 30.5x30.5mm stack is designed for 5″ FPV racing.
The flight controller features an F722 MCU at 216 MHz, an ICM‑42688 gyro with dedicated LDO power supply, and an integrated 2.4 GHz ExpressLRS receiver for reliable connectivity, even in extreme conditions.
The 4-in-1 ESC supports a continuous current of 80 A, 100 A burst, is compatible with 3‑8S LiPo, and uses a 6-layer PCB reinforced with overvoltage protection.
Quick reminder: upon receipt of your item, please connect it via USB and calibrate the accelerometer before starting to weld.
F435 ELRS FC
- MCU : STM32F722 216MHz
- Gyro : ICM42688P
- Built-in receiver : ELRS 2.4G
- Barometer : SPL06-001
- Power output : 10V 2A + 5V 2A x2
- Firmware support : Betaflight
- OSD : NBD7456
- Blackbox : SD card
- Mounting : 30.5x30.5mm
- Weight : 9g
80A ESC
- Firmware : AM32
- MCU : AT32F421
- Continuous current : 80A
- Burst : 100A (3s)
- Voltage input : 3-8S LiPo
- PCB : 6-layer, 3oz copper with blind vias
- TVS : 3x onboard TVS diodes
- Mounting : 30.5x30.5mm
- Weight : ~15.7g
Included
- 1x F722 ELRS flight controller
- 1x 80A AM32 ESC
- 10x Grommet
- 1x O3/O4plug and play cable
- 1x SH1.0 3pin cable.
- 3x SH1.0 4pin cable.
- 1x SH1.0 6pin cable
- 1x SH1.0 8pin cable
- 1x 14AWG power cable
- 1x XT60 plug
- 1x 8pin silicone cable
- 1x 1000uF capacitor
- 2x Heat shrink
