Manufacturer : Flywoo / Référence : FW19003949

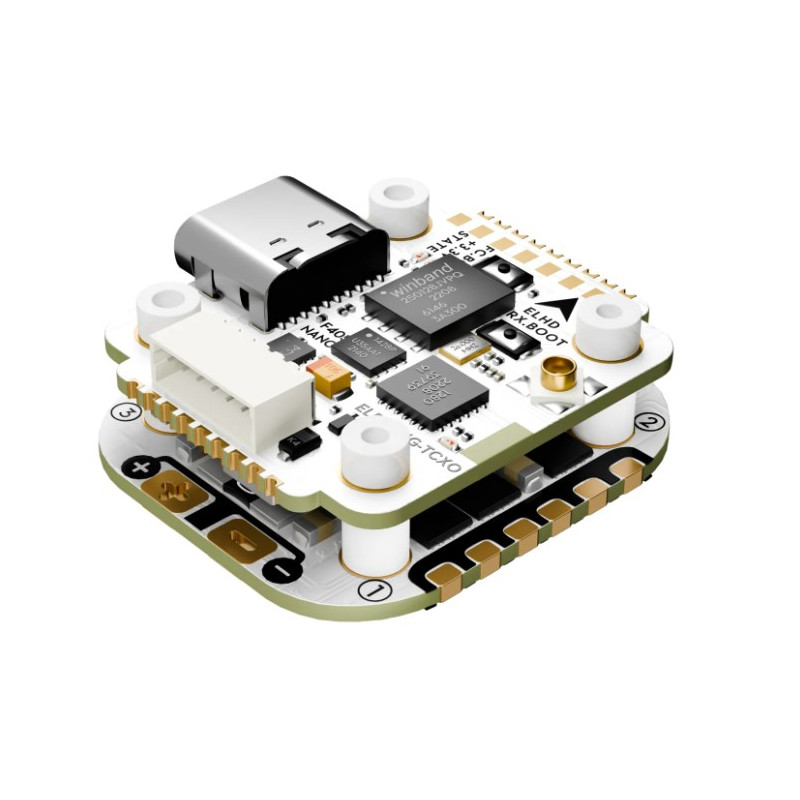

GOKU GN405 Nano HD 35A ELRS Stack V3 By Flywoo
En stock
€73.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The Flywoo GOKU F405 Nano has been completely upgraded. This compact third version features a 2.4G ELRS TCXO and a universal USB-C port.
Compatible with high-quality digital transmission modules such as the DJI O3 and DJI O4, the GN405 Nano is an ideal space-saving solution for micro drones.
The stack, consisting of the FC and 35A ESC, is 16x16mm in size, features a barometer, a 16MB blackbox, a 5V 2A / 3.3V 0.5A BEC, and supports 2-6S LiPo voltages.
GN405 V3 FC
- MCU : STM32F405 BGA
- GYRO : ICM-42688P(SPI)
- OSD : NO
- Barometer : DP310
- Black Box : 16MB
- USB Port Type : Type-C
- IMU(Gyro) : ICM42688P
- UARTS : (1,2,3,4,5,6)
- Input Voltage : 7.4V - 24V / 2 - 6S lipo
- BEC : 5V 2A / 3.3V 0.5A
- Size : 25mm x 23mm x 8mm
- Hole Position : M2 16X16mm
- Weight : 6.5g (FC+35A)
GOKU 35A ESC
- ESC MCU : BB21F16G
- POWER LED : NO
- Continuous current : 35A
- Input : 2-4s lipo
- Supports : PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
- Size : 27×33mm board, 16mm mounting holes (M3)
- Weight : 3.6g
Included
- 1x GN405 nano V3 flight controller with ELRS TCXO
- 1x 35A V3 ESC
- 1x XT30 cable
- 1x Flywoo antenna
- 1x Hardware set
