Manufacturer : T-Motor / Référence : TMOTOR-STACK-F7-HD-F55A
T-Motor Combo F7 HD FC + F55A PRO II
En stock
€145.75
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
For those who looking for a premium stack look no further !
The proven T-motor F55A 4in1 ESC and their new F7 HD Flight controller are the answer.
Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

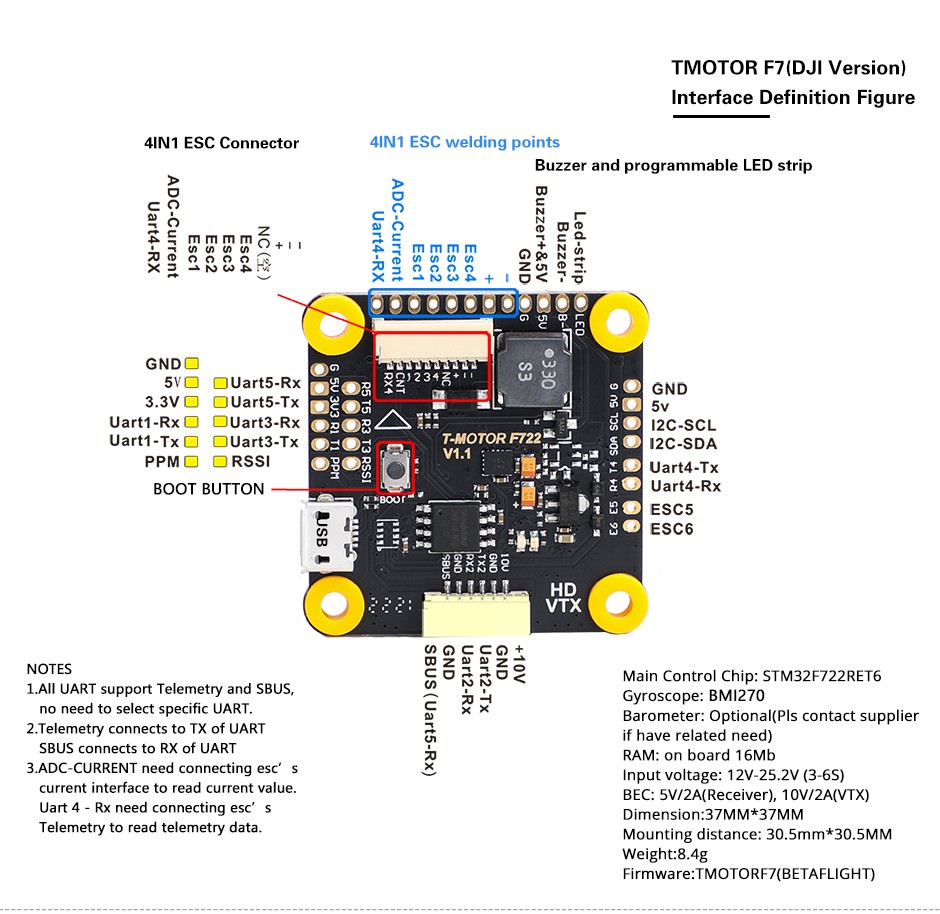

FC Specifications
- MCU: STMF722RET6
- Gyro: MPU6000 or BMI270
- Memory: 16M
- Input Voltage: 12v-25-2v (3-6S)
- BEC: 5V/2A
- Dimensions: 37mm x 37mm
- Mounting Holes: 30.5mm x 30.5mm
- Weight: 7.4g
- Firmware Target: TMOTORF7 (Betaflight)
ESC Specifications
- Continuous current: 4*55A
- Burst current: 4*75A
- BEC Output: 10V @2.0A
- Size: 45x41x7.3mm
- Weight: 17.3g (Including Heatsink)
- Support DSHOT150/300/600
- Firmware : AM32
Included
- 1 x T-Motor F7 HD Flight Controller
- 2 x FC to ESC Cable
- 4 x Vibration Dampeners
- 1 x F55A Pro 4 IN 1 Brushless ESC
- 4 x Damping Rubbers
- 1 x #12AWG-130MM with XT60 Soldered input wires
- 2 x AWG Type-100mm Signal wire
- 1 x Capacitor
