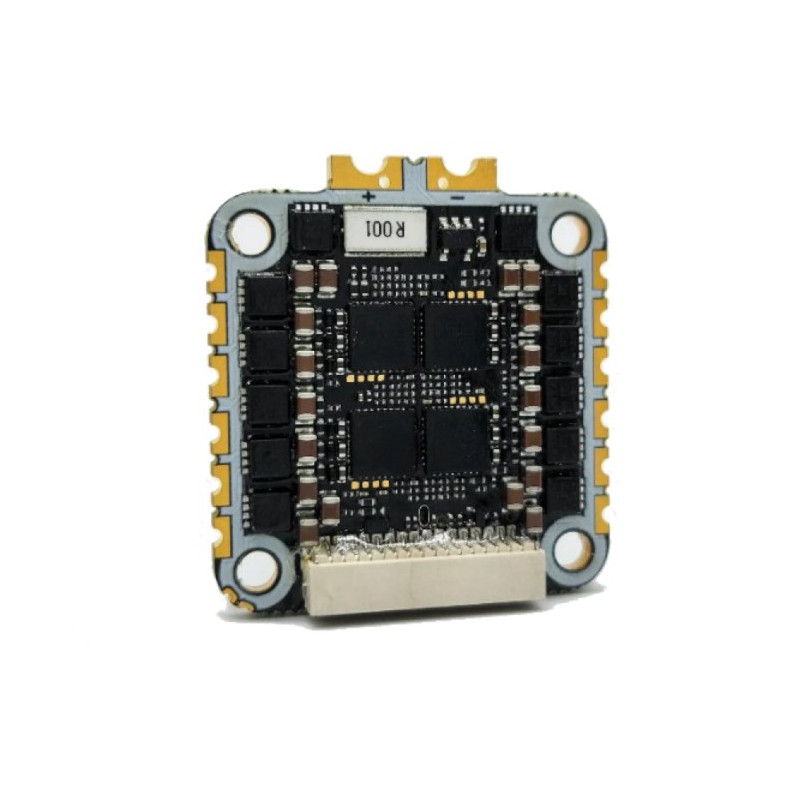

Hummingbird 255 F435 50A AM32 AIO By NewBeeDrone
Related accessories
Technical characteristics
The HummingBird 255 AIO is a high-performance all-in-one solution, ideal for modern FPV drones ranging from 2.5″ to 4″.
Powered by a 288 MHz AT32F435 MCU, it delivers superior processing power compared to F405 and F722 controllers, ensuring exceptional responsiveness. Its ICM‑42688 gyro, recommended by Betaflight, combined with a dual independent BEC system, provides clean and stable power to all essential components.
With an HD plug-and-play interface compatible with DJI O4, Walksnail, and HDZero, reinforced connectors, and the ability to handle up to 50 A continuous current, this flight controller guarantees reliable and powerful performance with no soldering required.
Its 25.5×25.5 mm form factor and optimized layout make installation easy, making it a top choice for pilots seeking smooth flight, durability, and simple integration.
Specifications
- MCU: AT32F435CGU7
- Gyro: ICM-42688
- Blackbox: 128MB
- Connectors : 6-Pin DJI FPV Air Unit Connector / USB-C Connector
- ESC: 4x AT32F421 AM32
- Continuous Current: 50A and 60A Burst ESC
- Battery Input: 3-6S
- Power Output: 10V 2A 20W (designed for HD VTX System)
- Dimensions: 35x32mm with 25.5x25.5 Mounting Holes
- Weight: 10.2g (without grommets)
- Betaflight OSD support Analog build
- I2C_SCL / I2C_SDA Ready
- Buzzer Ready
- LED Ready
- 5V 2A Power supply for external LED or GPS module
- UART7 - SBUS on DJI Connector (RX only)
- UART4 - DJI Connector
- UART5 - Free
- UART6 - Free
Included
- 1x Hummingbird 255 AIO
- 2x DJI O4 Cable 55mm (Silicon wire)
- 2x 16Pin Cable 120mm (Teflon wire)
- 10x Nylon Lock Nut
- 5x Steel Screw M2x14
- 4x Grommets Short
- 1x 470uf 35v Electrolytic Capacitor
- 1x XT30 Cable
