Manufacturer : GEPRC / Référence : GP106088
GEP-TAKER G4 35A AIO By GEPRC
Hors stock
€63.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics

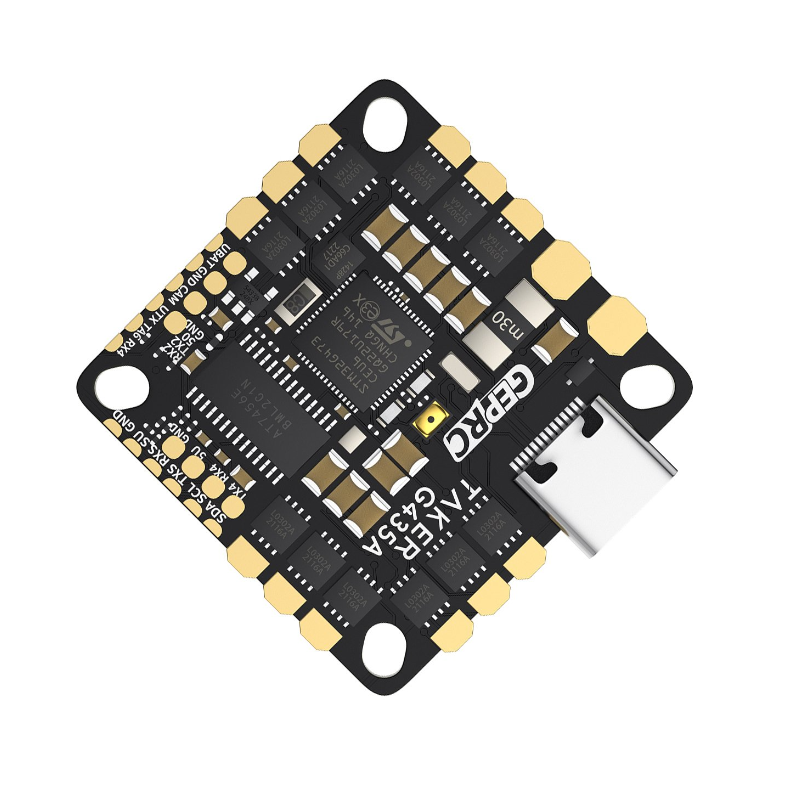

GEPRC's AIO TAKER G4 35A adopts G473 main control.
Following market demands, the Type-C interface has been improved and everything has been optimized to make soldering easier.
The Taker G4 35A mounts in 25.5x25.5mm, has an ICM42688P gyro, AT7456Ev OSD, 5V 3A BEC and supports Dshot600, Oneshot and Multishot.
Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.
Specifications
- MCU：STM32G473CEU6
- IMU：ICM 42688-P
- Firmware target：TAKERG4AIO
- OSD：Betaflight OSD w/ AT7456Ev
- Uart：R1 T1 / R2 T2 / R4 T4 / R5 T5
- Buzzer：YES
- LED ：YES
- USB ：Type-c USB
- BEC output：5V@3A
- ESC MCU：BB21F16G
- Continuous Current：35A
- Burst Current：45A(5″)
- lnput Voltage：2~4S (LIPO Battery)
- Supports：Dshot600,Oneshot,Multishot
- Current meter：210
- target：J -H -15
- Size：33.4×34.4mm Board
- Install hole:：25.5-26.5 Φ3.05mm
- Weight：7.7g
Included
- 1x GEP-TAKER G4 35A AIO
- 1x Set of cables
- 1x Capacitor
- 1x Set of dampers
