Manufacturer : Aikon / Référence : AIKON-F7-AIO-60A

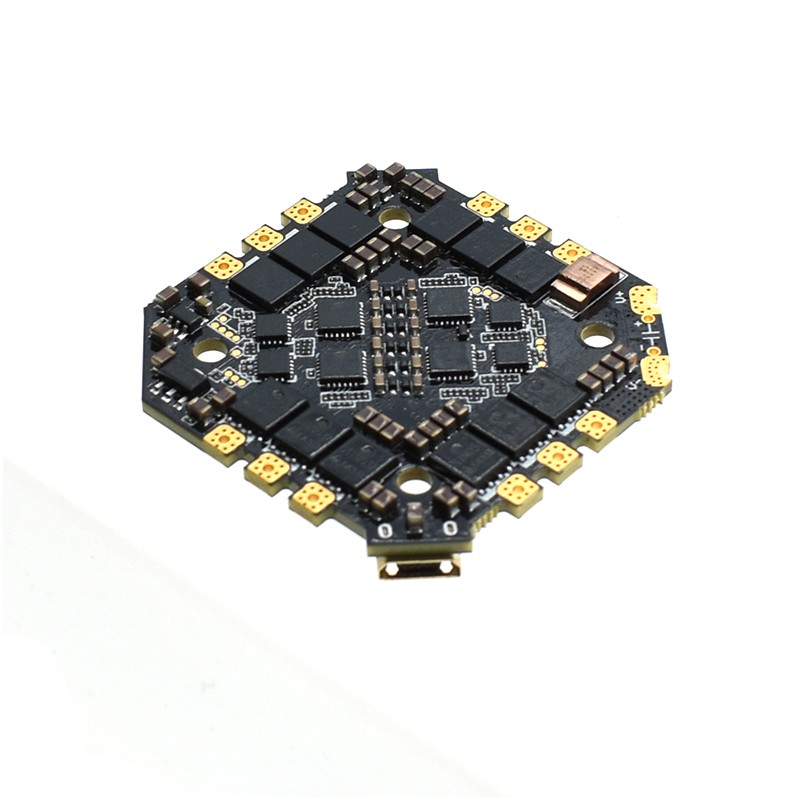

F7 60A AIO 6S Flight Controller By Aikon
Hors stock
€124.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
This new generation AIO flight controller from Aikon is designed for cinewhoops. This AIO has BLHeli_S firmware and has a BMI270 gyro and a 16MB SPI blackbox.
Bullet points
- 216mhz F7 processor
- 5 Software invertible hardware UARTS
- Onboard OSD and blackbox
- Software controlled VTX power switch (assigned to USER1 mode by default)
- LED and buzzer outputs (LED input doubles as PPM)
- On-board high overhead voltage regulators rated up to 6S (50v peak to handle voltage spikes)
- 10v 1.5A voltage regulator for DJI HD system
- Large 5x6mm high current MOSFETs.
Specifications
- Battery : 3-6s
- Mount Holes : 25.5*25.5mm
- Flight Control Firmware : Betaflight AIKONF7 Target
- MCU : STM32F722
- IMU : BMI270 (interrupt pin connected)
- Blackbox : SPI 16MB
- ESC Firmware : BLHeli_S (Supports BlueJay)
- Constant Current : 60A
- Burst Current : 70A
- Current Sensor Scale : 400
- Weight : 14g
- I2C port
Included
- 1x F7 60A AIO 6S Flight Controller
Customer reviews
Usually I love Aiokn, have several of their FCs but in this ocasion I have bougt two and both have broken (not working as it should) motor 1 output and DroneFPVracer are playing ignorant
Hard to solder,hard to mount since most quad frames ar squared,but worst is the gyro isn't aligned with the head arrow and had a few runaway takeoff before i figured out the cause
