HDZero Gamma 45A HD-Ready AIO
Related accessories
Technical characteristics

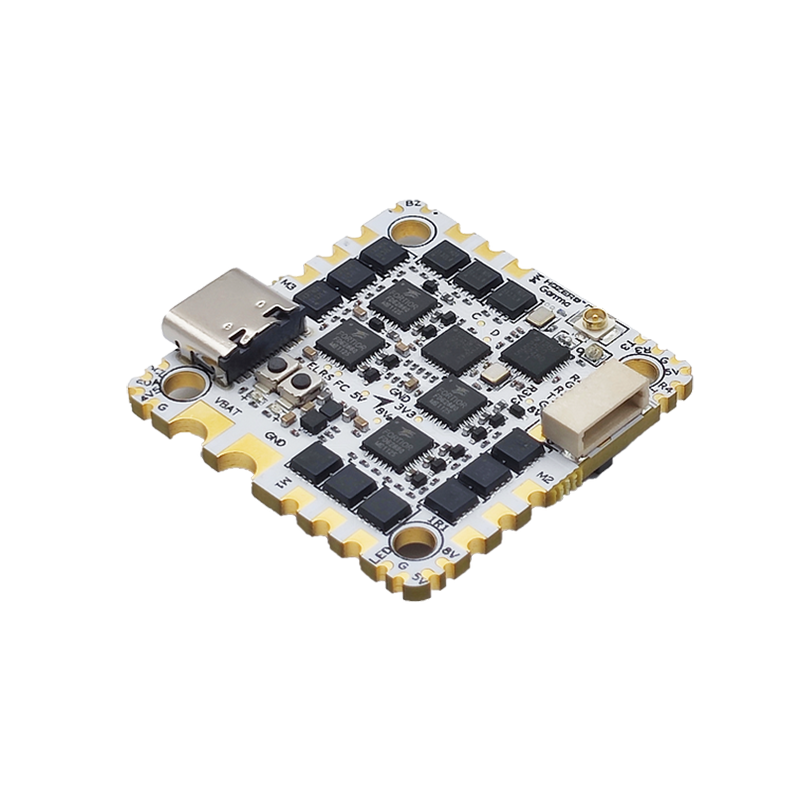

The HDZero Gamma 45A HD-Ready AIO is a compact and high-performance all-in-one flight controller, designed for modern digital FPV drones. Built around an STM32G473 MCU, it delivers excellent responsiveness and full compatibility with Betaflight, while maintaining a lightweight form factor ideal for compact builds.
It features a built-in ExpressLRS 2.4 GHz receiver, simplifying installation and reducing wiring. Designed specifically for digital systems, the board includes an HD VTX connector along with a dedicated 8 V / 3 A BEC for powering digital video transmitters, complemented by a 5 V / 3 A output for peripherals.
The integrated 32-bit AM32 4-in-1 ESC provides up to 45 A continuous current per motor, ensuring stable and reliable power delivery on 3S to 6S setups, even during demanding flights. Its clean layout, with edge-mounted pads, makes assembly and maintenance easier.
Optimized for 100% digital configurations, the Gamma 45A stands out for its smart integration, electrical reliability, and its ability to meet the needs of FPV pilots seeking performance and simplicity in an AIO format.
Note: *All HDZero products remain under warranty until out of the box.*
Specifications
- Mounting : 25.5×25.5mm (Whoop / Toothpick), 8.4g
- Recommended Builds : 2.5–4 inch digital FPV
- MCU : STM32G473
- Receiver : Integrated serial ExpressLRS 2.4GHz
- ESC Firmware : AM32 (32-bit 4-in-1)
- Motor Output : 45A continuous / 60A burst (per output), 3-6s
- Digital VTX Power : Protected 8V / 3A BEC
- Peripheral Power : 5V / 3A BEC
- Video Integration : Standard digital VTX plug
- OSD : Analog OSD chip removed (digital-optimized)
Included
- 1x HDZero Gamma 45A HD-Ready AIO
- 1x ELRS T-sharp short antenna (40mm)
- 5x M2 Rubber Grommet(5.6mm)
- 1x XT30 cable with 330uF/35V capacitor (70mm)
