Manufacturer : Flywoo / Référence : FW19003108

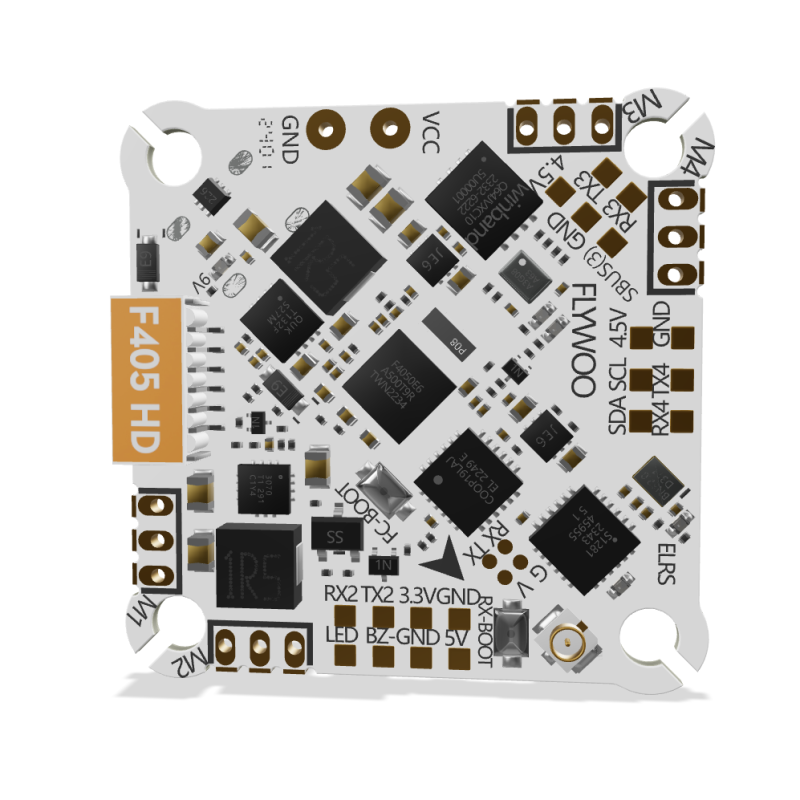

GOKU F405 HD 1-2S ELRS AIO V2 By Flywoo

Hors stock
€91.90
Out-of-Stock Notify me when the product is available again

10 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

With the increasing popularity of digital transmission, Flywoo presents an innovative solution for 1-2S HD micro drones.

This GOKU F405 HD V2 AIO integrates a Type-C interface, equipped with a high-performance F405 BGA MCU and offers enough UARTs to meet all your needs.

It effectively prevents power outages in the O3 and also consists of a 2.4G ELRS serial receiver, an 8MB blackbox, a barometer and a current sensor specially designed for VTX HDs.

Specifications

  • BF Flight Controller Firmware: FLYWOOF405S_AIO
  • INAV Firmware: FLYWOOF405PRO
  • MCU: STM32F405BGA
  • BEC:  5V 2A/9V 2A
  • Flash:  8M
  • LED: 2*WS2812
  • Barometer:  DPS310/SPL06
  • Gyro:  ICM42688P \ MPU6000
  • Motor: M1-M4 OUTPUT I2C: SCL/SDA
  • Uarts: 1,2,3,4,5,6
  • connector： Type-C
  • OSD: NO
  • Hole:  25.5*25.5-3mm
  • Size:  30*30mm
  • Weight: 4.9g

Onboard 4in1 ESC

  • Built-in 1S/2S 12A BL_S 4in1 ESC
  • Support Oneshot125, Oneshot42, Multishot,
  • Dshot150, Dshot300, Dshot600
  • Input Voltage: 1-2S Lipo
  • Firmware: BLHELI_S
  • Firmware: Z_H_30_REV16.7

ELRS 2.4G RX

  • ESP8285 MCU
  • SX1280IMLTRT RF Module
  • Frequency Range: 2400 MHz to 2500 MHz
  • Maximum receive refresh rate: 500Hz
  • Minimum receiver refresh rate: 25Hz Seiral:
  • UART 1
  • Firmware: Flywoo EL24P 2400 RX
  • Version: 3.X.X

Bullet points

  • Type-C Design: Utilizes Type-C , more convenient and reliable connections.
  • New Power Supply : Features 9V 2A BEC , effectively preventing power outages in the O3 Air unit due to voltage dropping .
  • Plug-and-Play O3 Port: Direct plug design for O3 air unit eliminates complex soldering steps
  • Motor Socket Design: Adopts socket connections for motors to facilitate quick replacements and upgrades.

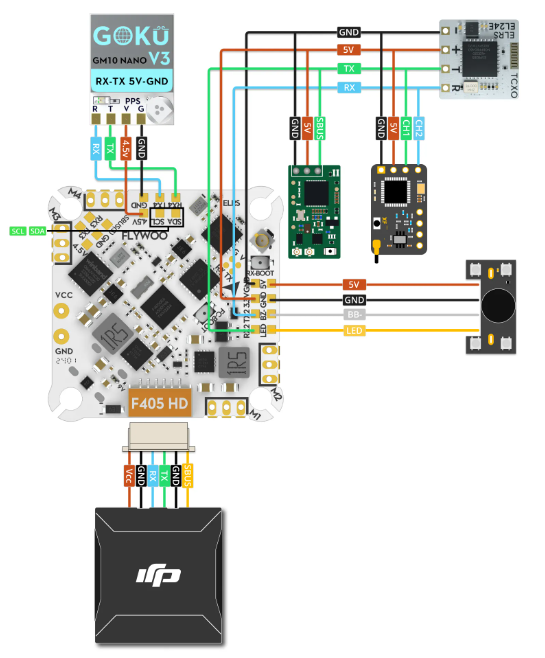

  • Multifunctional Design: Integrates a serial ELRS 2.4G receiver, 8MB black box, barometer, and current sensor, reserves 2 full UARTs and 1 standard SBUS port, supporting connections with various devices like GPS, HD VTX, and external receivers.

Included

  • 1x GOKU F405 HD AIO V2
  • 1x XT30 Power Cable
  • 1x Flywoo ELRS 2.4g Minimortal PCB T Antenna UFL
  • 1x DJI O3 Connection Cable
  • 1x PH 2.0 Battery Lead
  • 1x Capacitor
  • 4x JST Straight Socket
  • 4x M2*10 screw
  • 4x M2 nuts
  • 4x M2 shock-absorbing ball
