Manufacturer : Happymodel / Référence : 3D4018
Happymodel 2.4GHz T Antenna 40/90mm
En stock
€3.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics

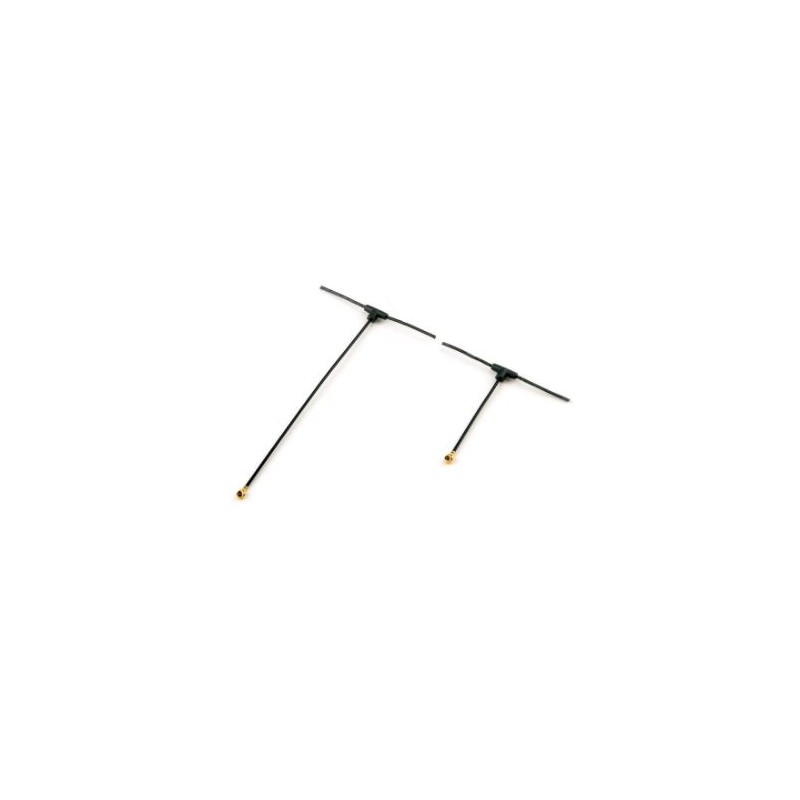

Happymodel 2.4GHz 40/90MM T-type Omnidirectional IPEX/IPX/U.FL Connector RC Antenna for ELRS EP1 Receiver
Compatible TBS Tracer
Specification
- Weight: 40mm-0.41g/90mm-0.56g
- Length: 40/90 mm
- Frequency: 2400.0 MHz
- Efficiency: -0.89 dBi
- Gain: 2.23 dBi
- Efficiency: 81.46 %
- Directivity: 5.12 dB
- Peak Gain Position: 180.00 Theta
- Peak Gain Position: 330.00 Phi
- Efficiency ThetaPol: 20.90 %
- Efficiency PhiPol: 60.56 %
- Upper Hem. Efficiency: 39.93 %
- Lower Hem. Efficiency: 41.54 %
- Connector: IPEX/IPX/U.FL
- Antenna width 52mm
- Antenna length 40mm/90mm
Included
- 1x Antenna
