Manufacturer : Flywoo / Référence : FW19004571

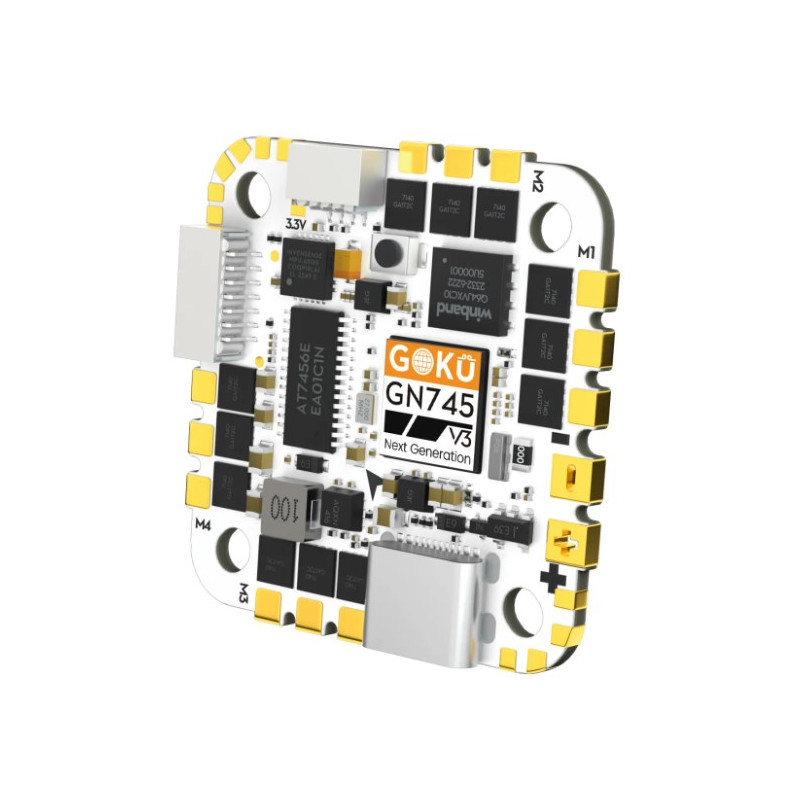

GOKU GN745 45A AIO 32Bit ICM42688P V3 By Flywoo

Hors stock
€88.90
Out-of-Stock Notify me when the product is available again

9 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

The GOKU GN745 AIO adopts fully plug&play connectivity, much simpler and faster for your assemblies. With a 25.5*25.5mm mounting, the GN745 V3 is equipped with an STM32F745 chip, AM32 firmware, an ICM42688P gyro, a dual BEC, a barometer and 7 UARTs ports.

Compatible with digital and analog VTX, the 45A AIO supports 2-6S Lipo voltage and BF, INAV and ArduPilot platforms.

Specifications

  • BF Flight Controller Firmware: FLYWOOF745AIO
  • INAV Firmware: FLYWOOF745
  • Ardupilot Firmware: FLYWOOF745
  • MCU: STM32F745 32-bit processor,216MHz, 1MB Flash
  • IMU: ICM42688P(SPI)
  • Barometer: SPL06
  • USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
  • 7 hardware UARTS (UART1,2,3,4,5,6,7)
  • Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
  • PPM and PWM receivers are not supported.
  • Onbord 16Mbytes for Blackbox logging
  • 5V Power Out: 2.0A max
  • 3.3V Power Out: 0.5A max
  • Dimensions: 33.5x33.5mm
  • Mounting Holes: Standard 25.5/26.5mm square to center of holes
  • Weight: 9.4g

Onboard 4in1 ESC

  • Support AM32
  • Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600,Dshot1200
  • Input Voltage: 2-6S Lipo
  • Continuous Current: 45A
  • Firmware: GOKU_F4A32_PRO

Included

  • 1x GN745 AIO
  • 1x UNICON UPL Capacitor 25V 470UF
  • 4x M2x6.6 Shock-Absoring Ball
  • 4x M2 Rubber Ring
  • 1x XT30 Power Cable
  • 1x DJI O3 Connection Cable
  • 1x VTX & Camera Connection Cable
  • 1x Receiver Connection Cable
  • 1x GPS Compass Connection Cable
