Manufacturer : GEPRC / Référence : GP107658

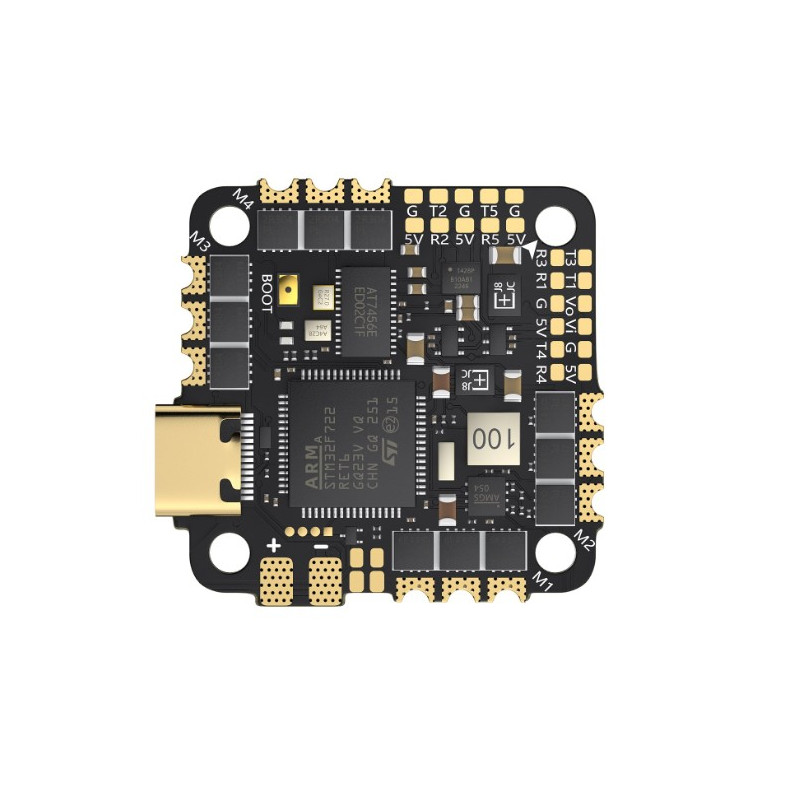

TAKER F722 45A 32Bit AIO By GEPRC

Hors stock
€87.90
Out-of-Stock Notify me when the product is available again

9 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

The TAKER F722 45A 32Bit AIO combines a powerful STM32F722 processor with the ICM42688-P (SPI) gyro, delivering high performance and fast data processing. It features a 25.5*25.5mm mounting and 5 full UART ports, providing support for a wide range of external devices.

A dedicated 6-pin port on the bottom allows for a direct plug-in connection to HD VTXs, minimizing soldering and simplifying installation. The integrated 32-bit ESC firmware ensures smooth and precise control during flight.

Supporting 2–6S LiPo input, this AIO handles a continuous current of 45A, with 55A bursts for up to 10 seconds, making it ideal for demanding builds. It also supports OSD tuning, LED strips, buzzers, and more—all packed into a lightweight 9.2g design.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

Specifications

  • MCU: STM32F722
  • IMU: ICM 42688-P (SPI）
  • Firmware Target: GEPRC_F722_AIO
  • Blackbox: 16Mb on-board flash memory
  • OSD: Betaflight OSD w/ AT7456E chip
  • Uart: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
  • Buzzer: YES
  • LED: YES
  • USB: Type-C USB
  • BEC Output: 5V@1A
  • ESC: 32Bit 45A
  • Continuous Current: 45A
  • Burst Current: 55A(10A)
  • Input Voltage: 2~6S (LIPO)
  • ESC Protocol: Dshot600, Oneshot, Multishot
  • Dimension: 35mm * 33.5mm
  • Mounting Hole Size: 25.5 mm * 25.5mm φM3 damping to M2 screw
  • Weight: 9.2g

Bullet points

  • Smooth throttle response with 32-bit ESC firmware.
  • Built-in barometer, compatible with INAV firmware.
  • Equipped with 42688-P gyro for stable and reliable performance.
  • Supports 2–6S battery input, 45A continuous current, 55A burst (10s).
  • Direct plug-in support for HD VTXs, no soldering, and easy installation.
  • Powered by STM32F722 MCU for faster processing.
  • Integrated 16MB Blackbox for flight data logging.
  • Supports OSD tuning, buzzer, LED, and more.
  • Features 5 full UART ports for connecting various external devices.

Included

  • 1x TAKER F722 45A AIO FC
  • 1x XT30-18AWG wire-7cm
  • 1x 35V 220μF capacitor
  • 1x SH1.0-6Pin to GH1.25-8Pin adapter cable
  • 1x SH1.0-6Pin cable
  • 8x M2×6.5mm FC dampening balls (black)
