Manufacturer : DarwinFPV / Référence : AIO-F411-45A-DARWIN
F411 45A ELRS AIO By DarwinFPV
En stock
€64.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics

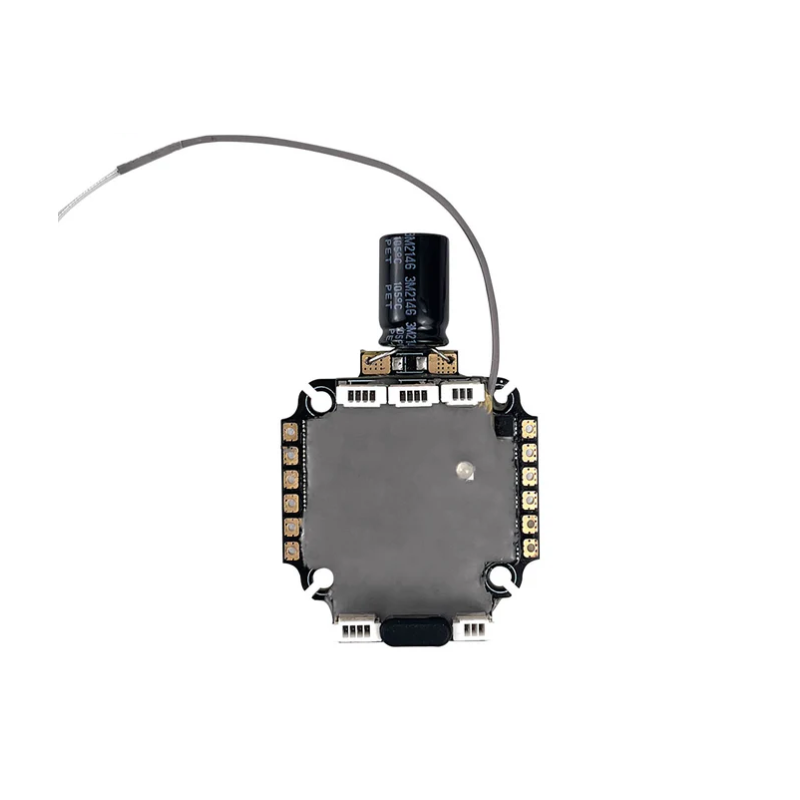

This DarwinFPV F411 45A AIO is mounted in 25.5*25.5mm and has a more compact and safer layout.
Unlike the traditional AIO, this one has its electronic components exposed on both sides outside the frame. You can connect a VTX O3, Vista, HDZero, Walksnail etc.
You are a beginner, do not know how to solder or do not want to, all interfaces are plugs, so no need for soldering!
Enjoy a built-in ELRS 2.4G receiver, an MPU6500 gyro, an OSD and a 5V/0.5A BEC.
Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.
AIO
- Input voltage : 3-6S LiPo
- Mounting : 25.5*25.5mm
- Dimensions : 58.5*38*13mm
- Weight : ~16.4g
- Package dimensions : 79*55*30mm
- Package weight : ~49.5g
F411 FC
- Main control chip : STM32F411
- Gyro : MPU6500
- OSD : AT7456E
- Receiver : SPI ELRS 2.4G
- Input voltage : 3-6S LiPo
- BEC : 5V/0.5A x3
- USB interface : 1x USB type-C
- Serial port : S5
- Firmware : DARWINF4SX1280HD (Betaflight)
- Dimensions : 38*23*8.5mm
- Weight : ~3.9g
45A ESC
- Main control chip : EFM8BB21
- Input voltage : 3-6S LiPo
- Current : 4x45A
- Peak : 4x55A (5s)
- Support throttle protocol : Dshot 300/600
- Galvanometer : Support
- Firmware : J_H_40 (Bluejay)
- Power cable : #16AWG/120mm
- Mounting : 25.5*25.5mm
- Dimensions : 38*38*4mm
- Weight : ~6.6g
Included
- 1x DarwinFPV F411 45A ELRS AIO
- 1x 120mm power wire（#16AWG red/black）
- 1x Analog camera wire（3P）
- 1x Analog VTX wire（4P）
- 1x GPS wire（4P）
- 1x HD VTX wire（4P）
- 2x SH1.0 plastic shell（3P）
- 3x SH1.0 plastic shell（4P）
- 1x Spare screws
- 5x M2*6.6 Shock absorbing ball(yellow)
- 1x Type-C dust plug
- 1x Sticker
