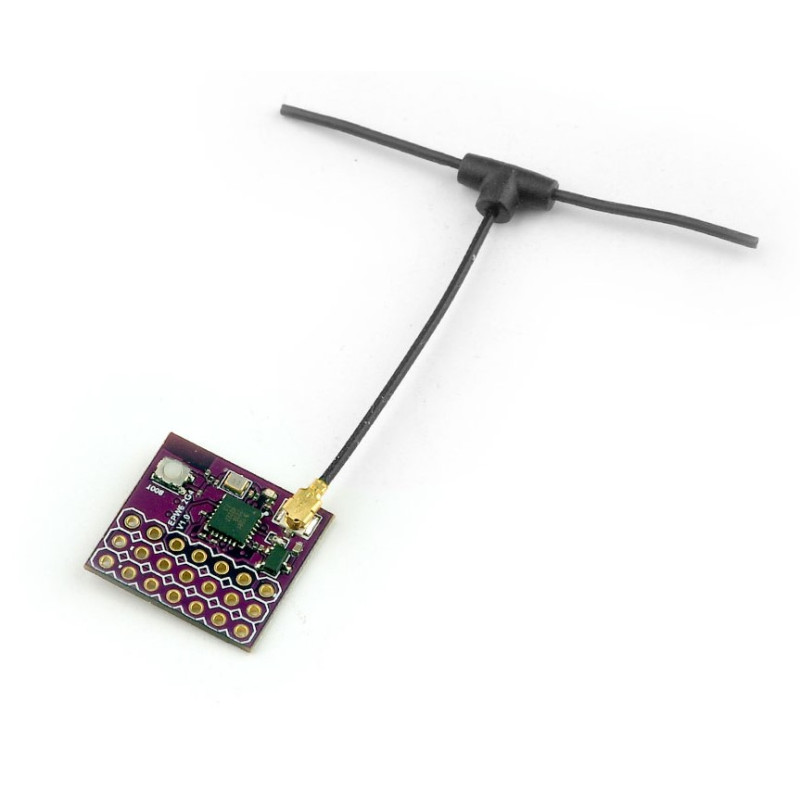

EPW6 TCXO PWM ELRS 2.4G Receiver By Happymodel

Out of stock
€13.25

View More Info
This product earns you 2 loyalty points.

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Ajouter à la Wishlist
EPW6 TCXO PWM ELRS 2.4G Receiver By Happymodel - Drone-FPV-Racer.com

Other reliable and tested choices

Ce produit est actuellement en rupture, mais pas de panique. Nous vous proposons une sélection d’articles similaires, testés et approuvés, pour répondre aux mêmes besoins et vous permettre de finaliser votre setup sans compromis.

Detailed Description

The Happymodel EPW6 TCXO receiver, successor to the EPW5, has 6 PWM outputs.

Specifications

Protocol ELRS 2.4G

Specifications

  • ESP8285, SX1280/1281
  • Antenna connector: IPEX MHF 1/U.FL
  • 6x PWM outputs
  • RF Frequency: 2.4GHz (2400~2480MHz)
  • Telemetry power: 12dbm
  • Receiver protocol: PWM or CRSF
  • Input voltage: +5v~8.4v
  • PCB size: 19mm x 17.5mm
  • Weight: 1.49g / antenna

Firmware:

  • Target option1: Generic ESP8285 6xPWM 2.4Ghz RX
  • PWM receiver via 1~6 PWM outputs
  • Target option2:HappyModel_EP_2400_RX
  • CRSF Serial receiver via TX and RX
  • Firmware update via WIFI

Included

  • 1x Happymodel EPW6 TCXO 2.4GHz PWM Receiver
  • 2x 2.4GHz antenna
  • 3x 7pin 2.54mm
