Manufacturer : Matek / Référence : ELRS-R24-P6V

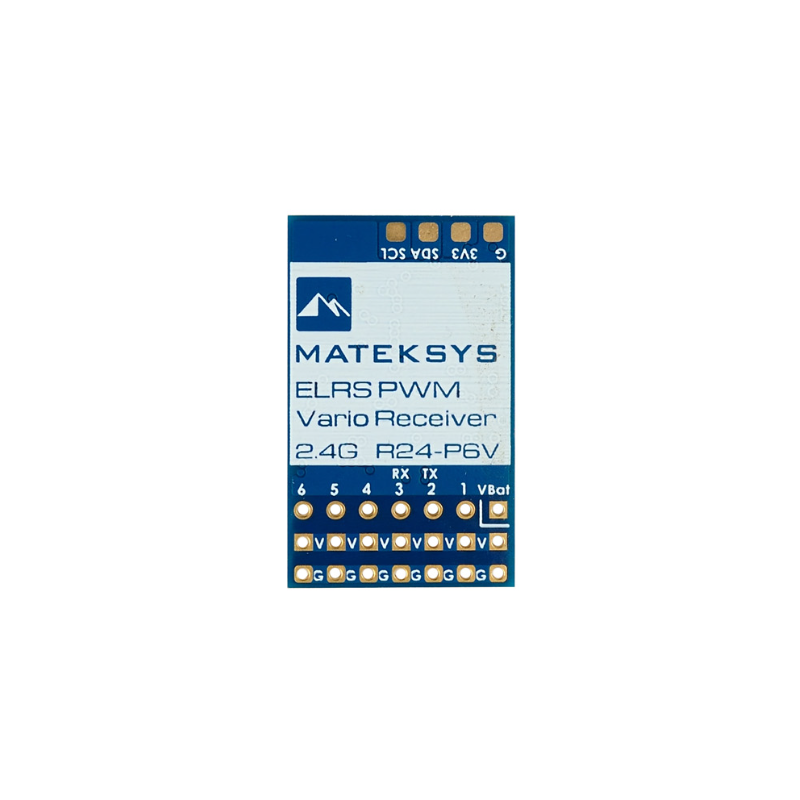

ELRS R24-P6V PWM Vario Receiver By Matek
En stock
€23.25
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
This ExpressLRS receiver from Matek is equipped with a vario to indicate the ascensional speed.
The R24-P6V is a receiver primarily intended for aircraft/flying wings.
It consists of a telemetry power of 22.5dBm (180mW), an SPL06-001 barometer and transmits on a 2.4GHz RF frequency.
*Power and distance are subject to specific regulations, be sure to respect those established in the country where you are playing.
Specifications
- ESP32-PICO-D4, SX1281, ExpressLRS Firmware
- PA/LNA: SE2431L
- RF Frequency: 2.4GHz ISM
- Telemetry power: 22.5dbm (180mW)
- Diversity: Antenna-switching, default ANT1
- Barometer SPL06-001 (Vario)
- Receiver output: 6x PWM CH
- VBAT voltage sense: 0~25.5V
- Antenna connector: IPEX MHF-1
- Power supply: 4-13V DC @ “V” Pad
- Power dissipation: 60mA~80mA@5V IN
- PCB size: 30mm x 18mm
- Weight: 4g w/ antenna
Included
- 1x ELRS R24-P6V receiver
- 2x IPEX MHF1 15cm antenna
