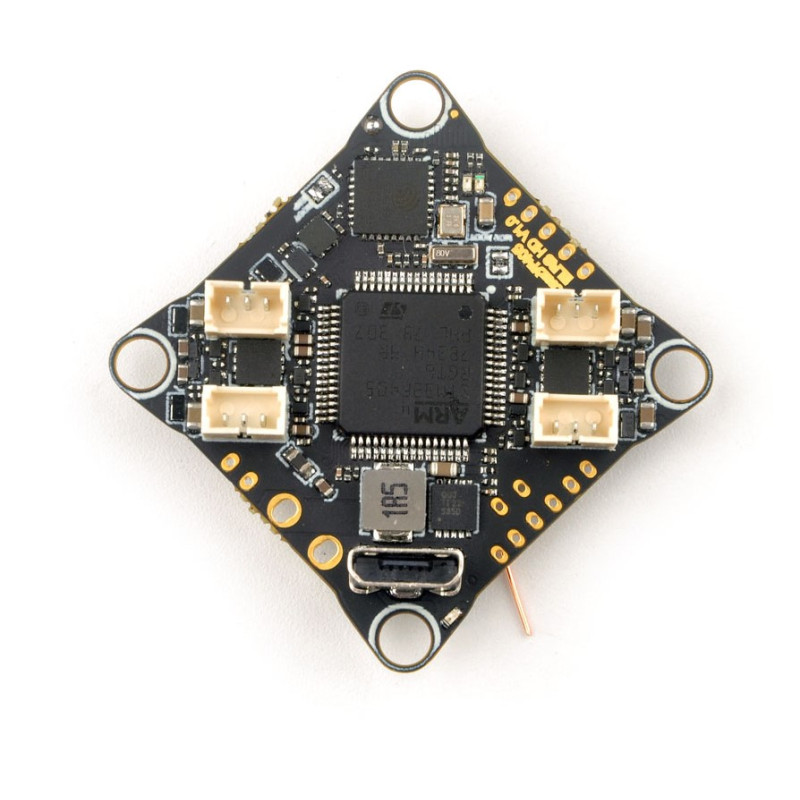

CrazyF405 HD ELRS 12A AIO By Happymodel

Out of stock
€51.58

View More Info
This product earns you 6 loyalty points.

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Ajouter à la Wishlist
CrazyF405 HD ELRS 12A AIO By Happymodel - Drone-FPV-Racer.com

Detailed Description

This Happymodel AIO with integrated ELRS receiver has been specially designed for HD as well as the Mobula8.

No OSD chip for more layout optimization.

The CrazyF405 HD supports Betaflight/INAV, has 3 set UARTS, a BMP280 barometer as well as an 8Mbp blackbox.

Specifications

Video Walksnail
Video DJI O3
Video DJI FPV
Video HDZero
Processor F4
Amp 12A
Protocol ELRS 2.4G
Voltage 2S
Gyro BMI270
Mount Size 25.5x25.5mm
ESC Firmware BLHeli_S

Specifications

  • Mounting: 25.5*25.5mm
  • Weight: 4.8g (without cable)
  • Firmware target: BetaflightF4
  • Voltage: 1-2S
  • Gyro: BMI270
  • ESC: 12A BLHeli_S 4in1
  • Barometer: BMP280 ELRS
  • Blackbox: 8MBp
  • ESC: 12A
  • Burst: 15A (3s)
  • RX: ExpressLRS 2.4GHz

Included

  • 1x Crazy F405 HD ELRS
  • 1x XT30 cable
  • 4x Damper
  • 4x Screw
